OVERVIEW

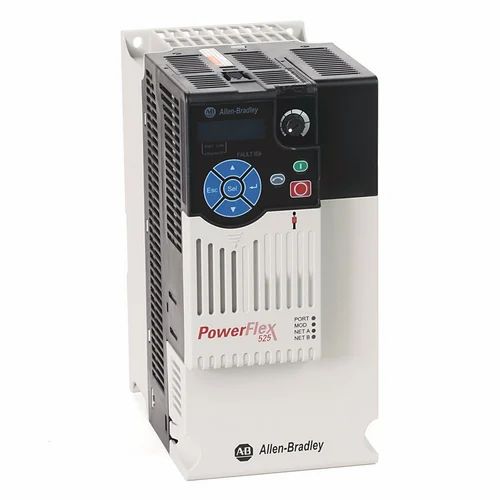

The Allen Bradley PowerFlex 525 AC Drives are advanced motor control solutions designed for a wide range of industrial applications. These drives offer compact size, flexible configuration, and energy-saving features that make them ideal for improving machine performance and reliability.

In industrial automation, the PowerFlex 525 plays a key role by providing precise speed and torque control, easy integration with control systems, and built-in safety functions. It supports various communication protocols, which allows seamless connection with modern automation networks. This helps industries achieve higher productivity and efficiency.

For textile automation, the PowerFlex 525 is highly effective in controlling equipment like spinning machines, looms, and finishing units. Its smooth motor control ensures consistent product quality, reduced machine wear, and lower downtime.

Overall, the PowerFlex 525 combines flexibility, safety, and cost savings, making it a smart choice for industries looking to modernize their automation systems while maintaining reliable and efficient operations.

SPECIFICATION

Power Range: 0.4 kW to 22 kW (0.5 to 30 HP)

Voltage Classes:

100–120V AC, Single-Phase

200–240V AC, Single/Three-Phase

380–480V AC, Three-Phase

Control Modes: V/Hz, Sensorless Vector Control (SVC), and Closed-Loop Feedback (with encoder option)

Frequency Range: 0 to 500 Hz

Motor Control: Supports induction and permanent magnet motors

Communication Options: Built-in Ethernet/IP, DeviceNet, Modbus, and optional communication modules

Safety Features: Safe Torque-Off (STO), reducing downtime and improving safety in industrial automation

Operating Temperature: Up to 50°C without derating (60°C with derating)

Design: Compact size with removable control module for easy programming and installation

I/O Capabilities:

5 digital inputs

1 analog input

1 analog output

1 relay output

FEATURES

The Allen Bradley PowerFlex 525 AC Drive comes with advanced features that make it a smart choice for industrial applications, industrial automation, and textile automation. One of its key features is the compact design, which allows easy installation even in limited spaces. It offers a wide power range and supports both single-phase and three-phase inputs, making it suitable for different industries.

For industrial automation, the PowerFlex 525 provides flexible motor control with V/Hz and sensorless vector modes. It supports induction and permanent magnet motors, giving users more options for modern systems. The drive has built-in Ethernet/IP and Modbus communication, making it simple to integrate into connected factories and smart machines.

Safety is another strong feature, with Safe Torque-Off (STO) that protects workers and equipment without additional hardware. The drive is energy-efficient, helping reduce operating costs, and it can operate in higher temperatures, ensuring reliable performance in demanding conditions.

In textile automation, it ensures smooth speed control for spinning, weaving, and dyeing machines, resulting in consistent fabric quality and reduced downtime.
