OVERVIEW

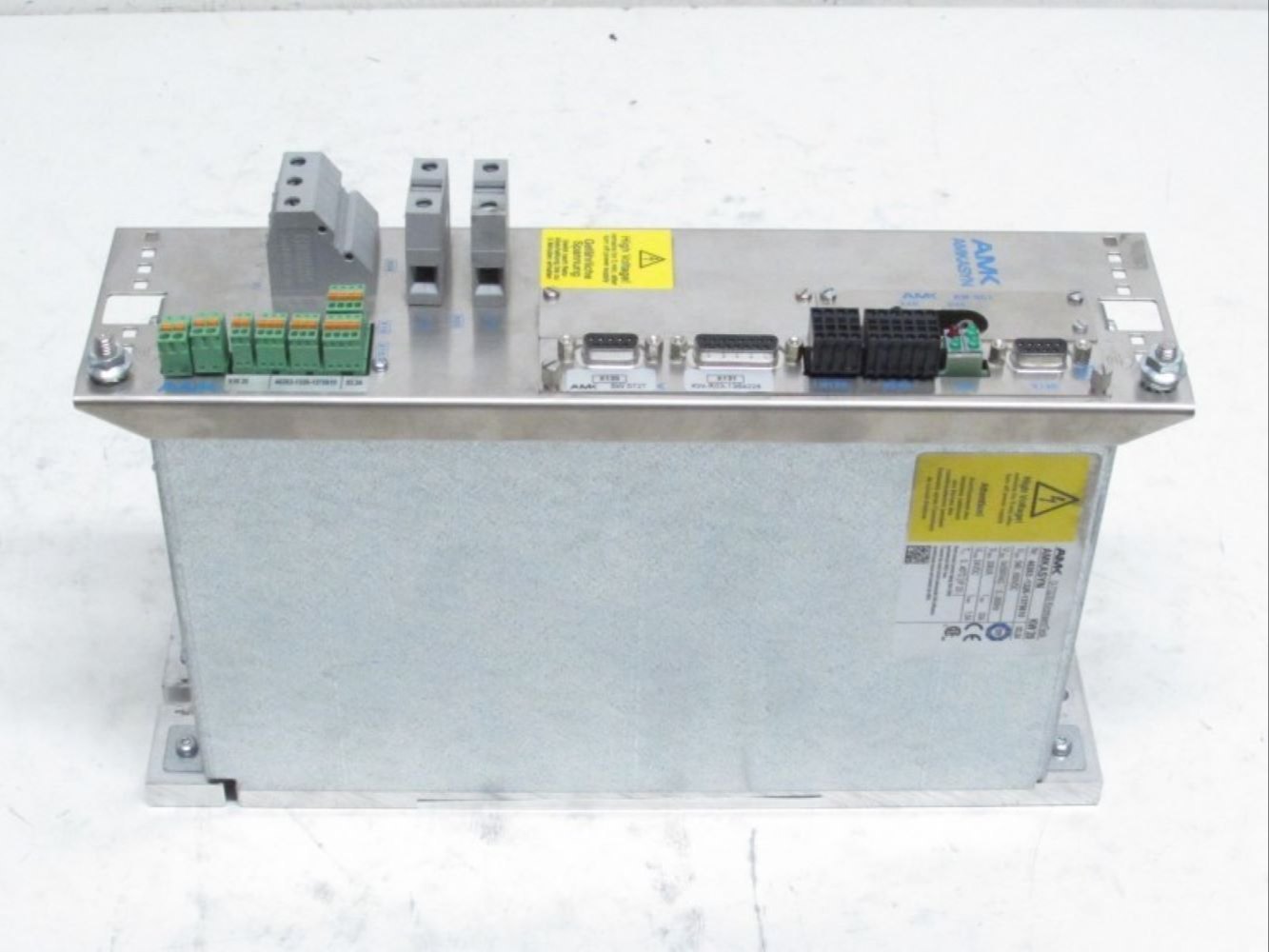

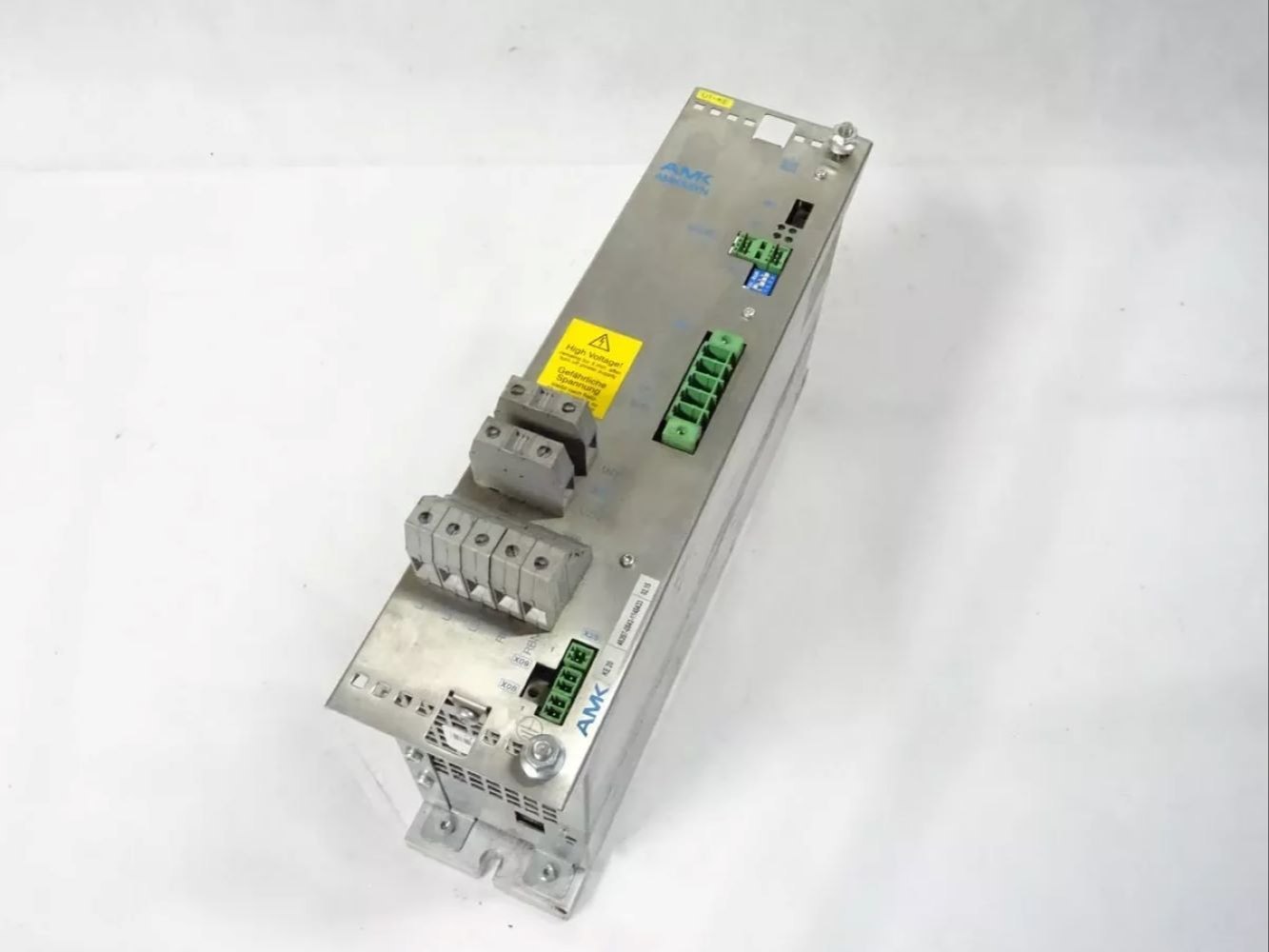

The AMK AMKASYN K20 is a servo drive system engineered for high-performance industrial applications, particularly those requiring dynamic positioning.

SPECIFICATION

• Input Voltage: 540 to 650 VDC

• Input Current: 37 A

• Output Power: 20 kVA (nominal), with a maximum output power of 40 kVA

• Rated Output Current: 33 A

• Dimensions: Width of 85 mm

• Weight: Approximately 4.2 kg

FEATURES

• High Performance: Utilizes advanced processor technology to deliver enhanced performance for demanding tasks.

• Modular Design: The system’s modularity allows for flexible configuration, enabling users to select only the necessary modules, optimizing both space and cost.

• Real-Time Communication: Supports real-time Ethernet protocols such as EtherCAT and VARAN, ensuring efficient and high-speed system communication.

• Safety Integration: Features integrated safety functions, including an Output Stage Enable (OSE), to meet stringent safety standards.
