AMK Drive KE 40 E718
AMK Drive KE 40 E718

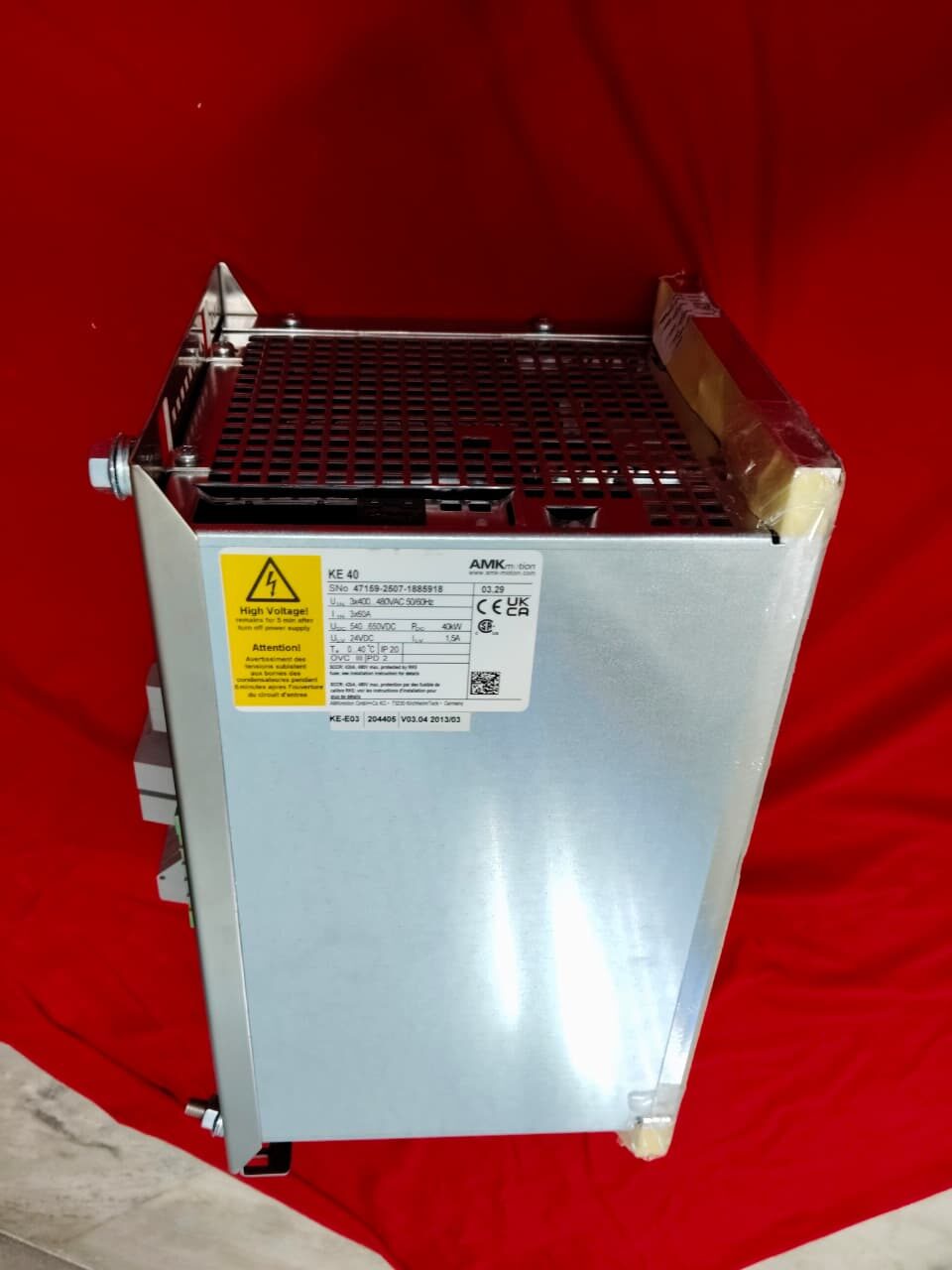

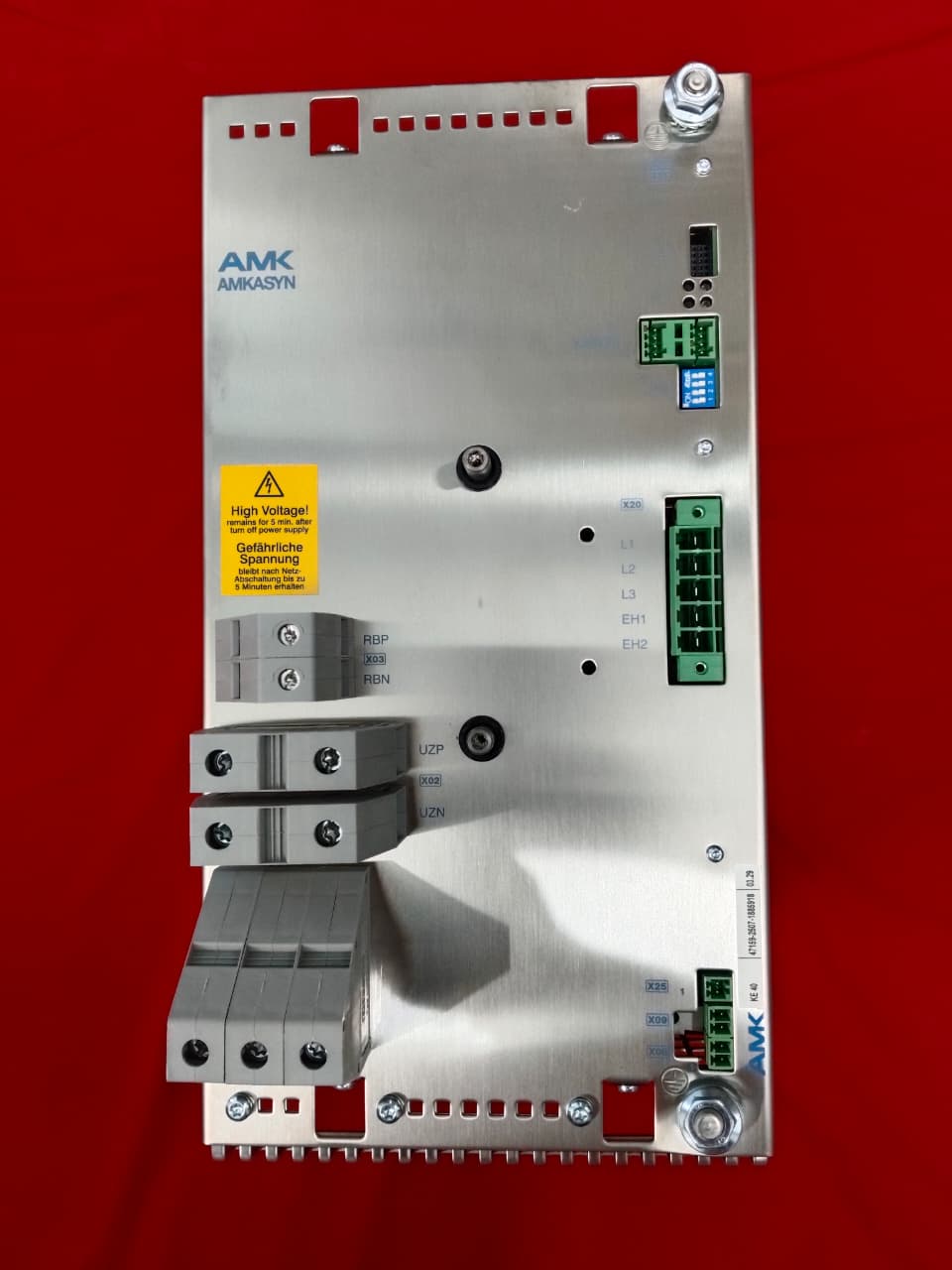

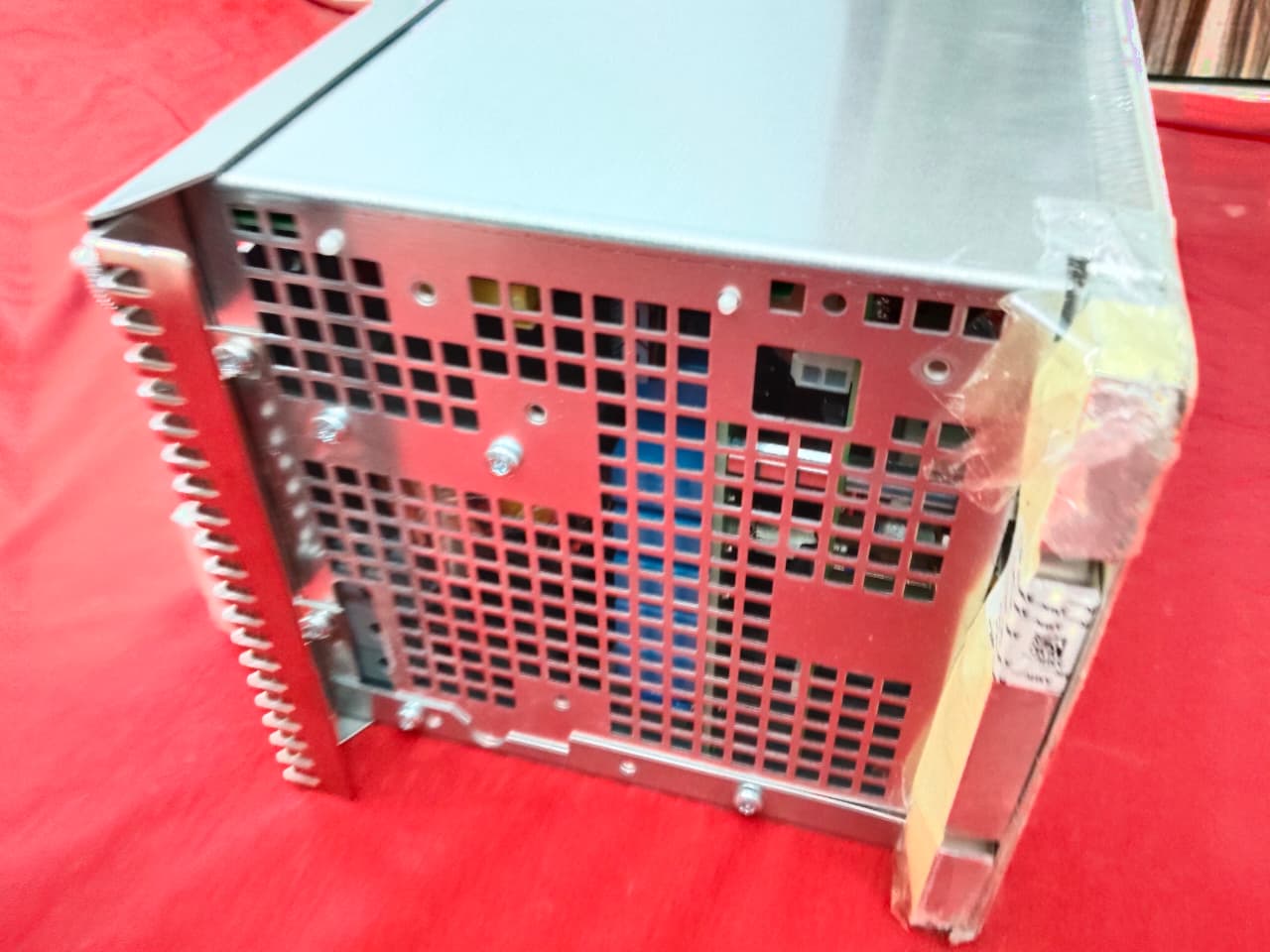

The AMK Drive KE 40 E718 is a high-power servo drive power supply module used in industrial automation systems. It belongs to the AMK KE series and is mainly designed to supply power to inverter modules and control servo motors in machinery. This drive delivers a rated power of 40 kW, making it suitable for heavy-duty industrial applications such as textile machinery, packaging machines, and automation lines. It operates on 3-phase 400V AC input and provides a stable DC bus output to connected inverter units. The KE 40 E718 model is known for its high efficiency (around 99%), which helps reduce energy loss and improves overall system performance. It also includes built-in protection features like overcurrent protection, short circuit safety, and temperature monitoring to ensure safe operation. This AMK drive is part of a modular servo system, where the KE unit supplies power and the KW inverter controls motor movement. It is widely used in industries requiring precise motion control, reliability, and high power output.
Overall, the AMK Drive KE 40 E718 is a dependable solution for modern industrial automation systems.
OVERVIEW
The AMK Drive KE 40 E718 is a powerful and reliable solution used in modern Industrial Automation systems. This AMK Drive belongs to the KE 40 series and is designed to supply stable power to servo drives and motor control units. It plays an important role in ensuring smooth and efficient machine operation in different industries.
The AMK KE 40 is widely used in applications where high performance and accuracy are required, such as textile machinery, packaging systems, and automated production lines. It works as part of the AMKASYN drive system, which combines power supply and motor control for precise motion handling.
This drive unit supports high power output and operates efficiently under heavy load conditions. It helps improve machine productivity and reduces energy loss during operation. The compact design allows easy installation in control panels, and it requires low maintenance.
Overall, the AMK Drive KE 40 E718 is a dependable choice for Industrial Automation. With its strong performance and compatibility with AMKASYN drive systems, it ensures stable operation, better efficiency, and long service life in industrial environments.
SPECIFICATION
Specification Details
Product Name AMK Drive KE 40 E718
Product Type Power Supply Module (Servo Drive)
Series KE 40 (AMK KE 40)
System AMKASYN drive
Application Industrial Automation
Rated Input Voltage 3 × 400 V AC (±10%)
Frequency 47 – 63 Hz
Input Current Approx. 60 A
Rated Output Power 40 kW
Peak Output Power Up to 80 kW (short duration)
Efficiency Approx. 99%
Power Factor > 0.9
Cooling Type Cold plate / Air cooling design
DC Bus Function Supplies power to inverter modules
Brake System Integrated braking transistor, external resistor support
Minimum Brake Resistor 8 Ω
Protection Features Overcurrent, short circuit, overtemperature
Regenerative Function Supported (energy feedback)
Width Approx. 170 mm
Weight Approx. 8 kg
Mounting Panel Mount
Usage Textile machinery, automation systems, production lines
FEATURES
The AMK Drive KE 40 E718 offers strong performance and reliable operation for Industrial Automation systems. This AMK Drive is designed to provide stable power supply to servo drives, ensuring smooth and accurate machine control. The KE 40 model supports high power output, making it suitable for heavy-duty industrial applications.
The AMK KE 40 works efficiently under continuous operation and helps reduce energy loss, improving overall system performance. It is part of the advanced AMKASYN drive system, which combines power supply and motion control for precise and stable machine movement. This feature is especially useful in automated production lines and textile machinery.
The drive comes with built-in safety features such as overload protection, short circuit protection, and temperature monitoring, ensuring safe and long-lasting operation. Its compact design allows easy installation in control panels, saving space in industrial setups.
Overall, this AMK Drive is a dependable solution for Industrial Automation, offering high efficiency, low maintenance, and consistent performance with AMK KE 40 and AMKASYN drive systems.
