OVERVIEW

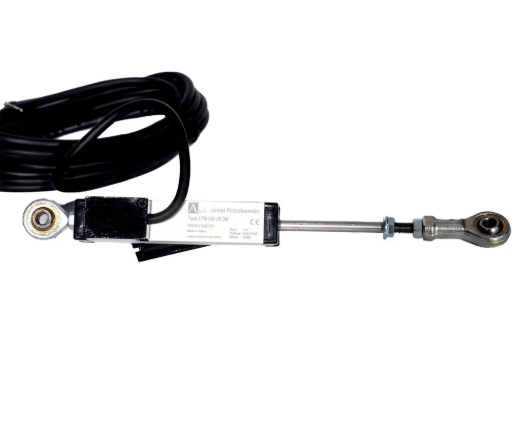

The Atek LTP 150A Potentiometric Linear Transducer is a high-precision device widely used as part of textile machinery parts. It is designed to measure linear displacement and convert it into an accurate electrical signal, ensuring smooth operation in machines that require constant monitoring and control. In the textile industry, where accuracy and consistency are very important, this component plays a key role in maintaining fabric quality and production efficiency.

As one of the important textile machine spare parts, the Atek LTP 150A is valued for its durability and long service life. It can withstand continuous machine operations, making it suitable for weaving, knitting, and other textile processes. Its compact design allows easy installation, while the potentiometric technology ensures reliable and repeatable performance.

By using the Atek LTP 150A, textile manufacturers can reduce downtime, improve machine alignment, and enhance overall productivity. Simple to maintain and dependable in performance, this linear transducer has become a trusted solution in the field of modern textile machinery.

SPECIFICATION

Measurement Stroke: Offers a potentiometric measuring range up to 150 mm among options from 50 to 1000 mm.

Construction & Movement: Features a double-articulated body with pivot heads, allowing up to ± 30° angle movement during use.

Operation Type: Works as an absolute potentiometric sensor — it does not lose its position data even if power is turned off.

Resolution & Linearity: Has a high resolution down to 0.01 mm and linearity around ±0.2% (some variants go up to ±0.12%).

Output Options: Comes with three interface choices:

Potentiometric (voltage divider)

4–20 mA, optionally 0–20 mA

0–10 V analog

Electrical & Mechanical Specs:

Max Speed: ≤ 5 m/s

Life Span: Up to 50 million movements; in some models, 100 million

Electrical Connections: Offers options such as shielded PVC cable, DIN 43650-C socket, or M12/4-pin socket

Environmental & Build:

Operating Temperature: –30 °C to +100 °C

Protection Level: IP62 (some versions IP65)

Materials: Aluminum body and stainless steel rod

FEATURES

The Atek LTP 150A Potentiometric Linear Transducer is a trusted choice in textile machinery parts because of its accurate performance and durable design. One of its key features is its high measurement precision, with resolution up to 0.01 mm, making it ideal for textile machines where small movements must be monitored carefully. It is designed with a robust aluminum body and stainless-steel rod, ensuring long life and reliability even in demanding conditions.

This transducer is easy to install thanks to its double-articulated mounting with pivot heads, which allow flexibility up to ±30°. It also works as an absolute sensor, meaning it does not lose position data when power is switched off. Available with different output options like potentiometric, 4–20 mA, and 0–10 V, it can be used with a variety of control systems.

As one of the dependable textile machine spare parts, the Atek LTP 150A ensures stable operation, reduced downtime, and consistent production quality, making it a valuable investment for textile manufacturers.
