OVERVIEW

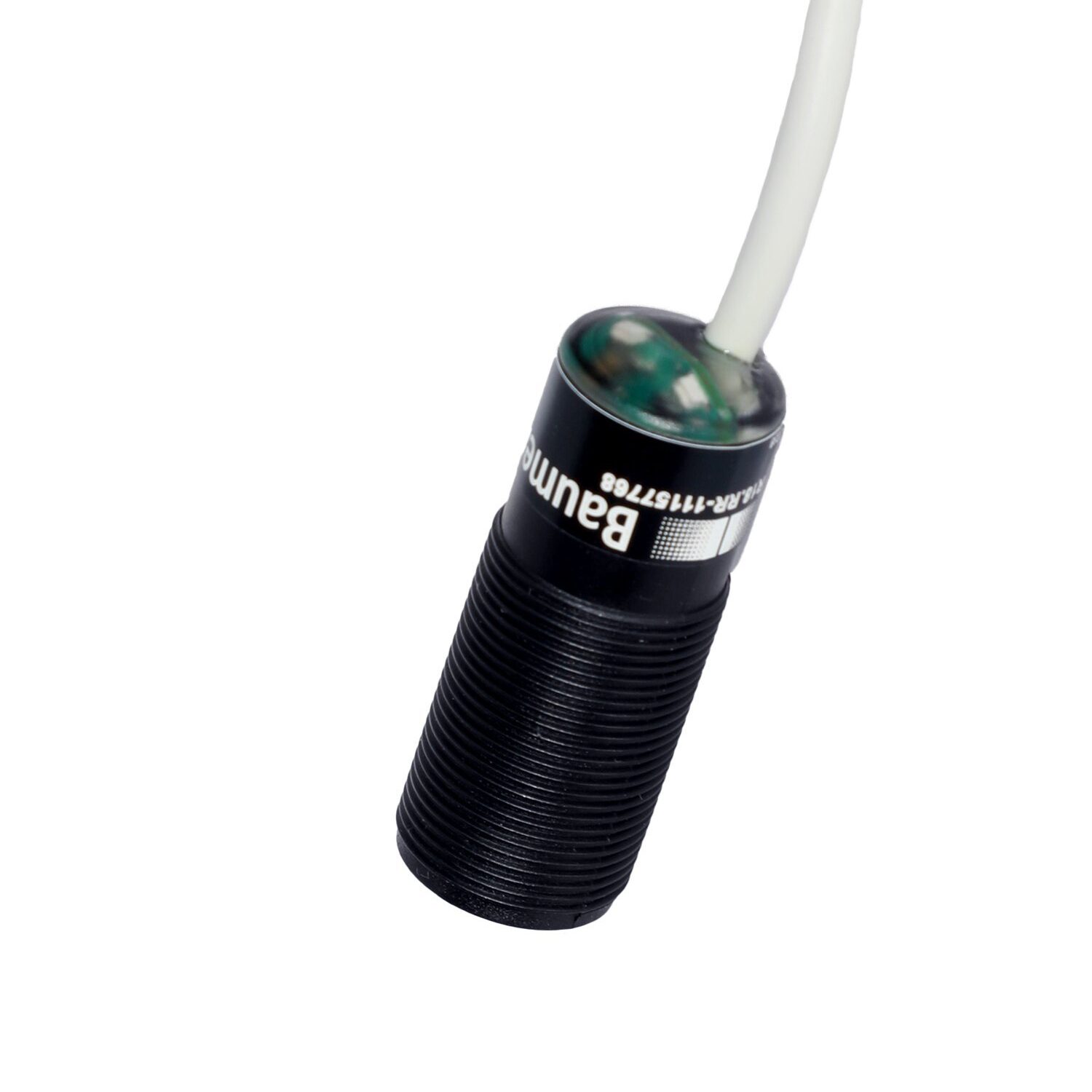

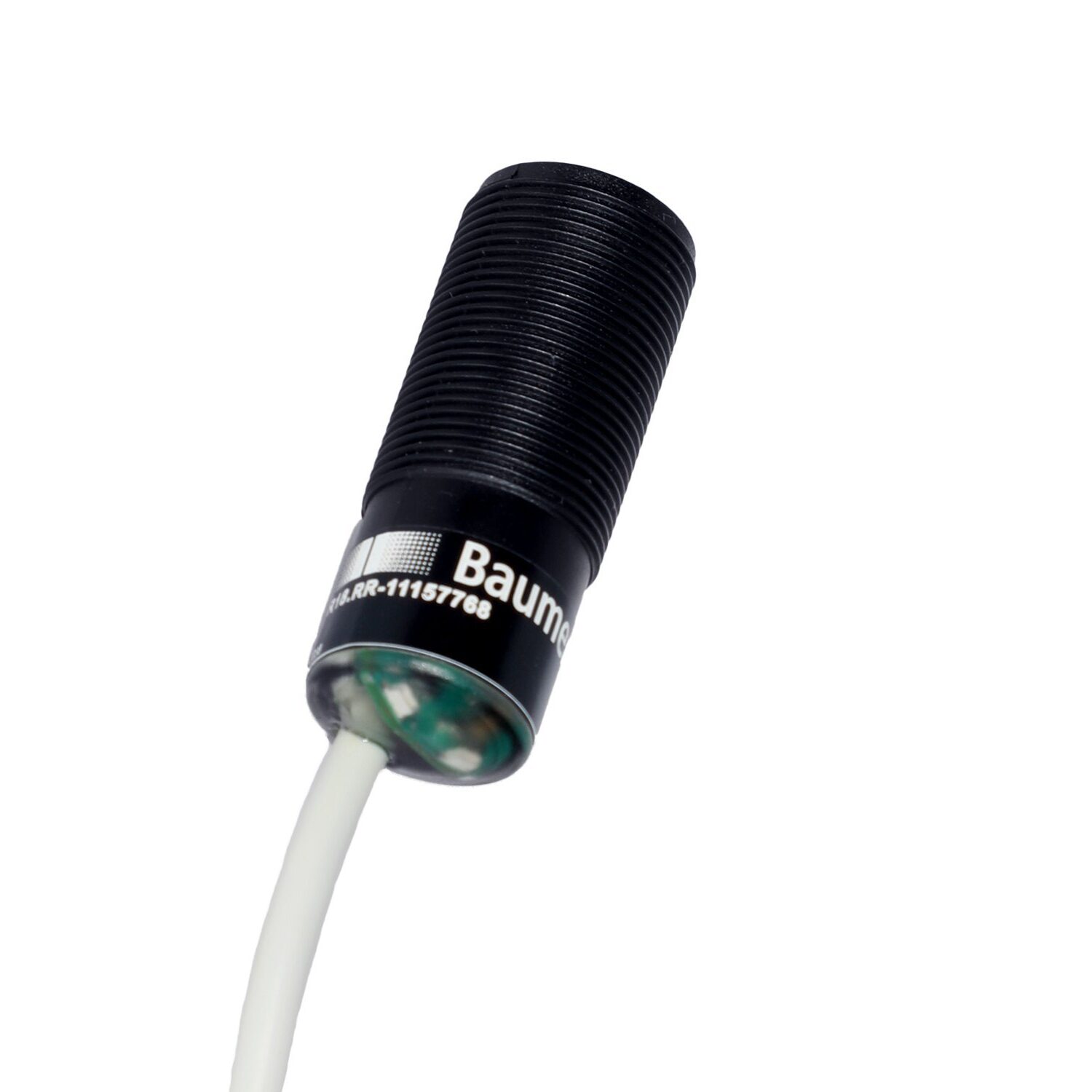

The Baumer OR18.RR-PW1Z.71CV is a retro-reflective photoelectric sensor designed for reliable object detection in industrial applications. It utilizes a pulsed red LED light source and features a polarization filter to accurately detect objects up to 3.5 meters away.

SPECIFICATION

• Sensing Range: Actual sensing distance of 3.5 meters, with a nominal range of 4.5 meters.

• Light Source: Pulsed red LED with a wavelength of 660 nm.

• Indicators: Green LED for alignment and soiled lens indication; yellow LED for output status.

• Output: PNP output with light/dark operate function, supporting up to 100 mA current.

• Response Time: Less than 1 ms, suitable for high-speed applications.

FEATURES

This sensor is ideal for applications requiring precise and rapid object detection, such as conveyor systems, packaging machinery, and automated assembly lines. Its robust design and reliable performance make it a valuable component in various industrial environments.
