OVERVIEW

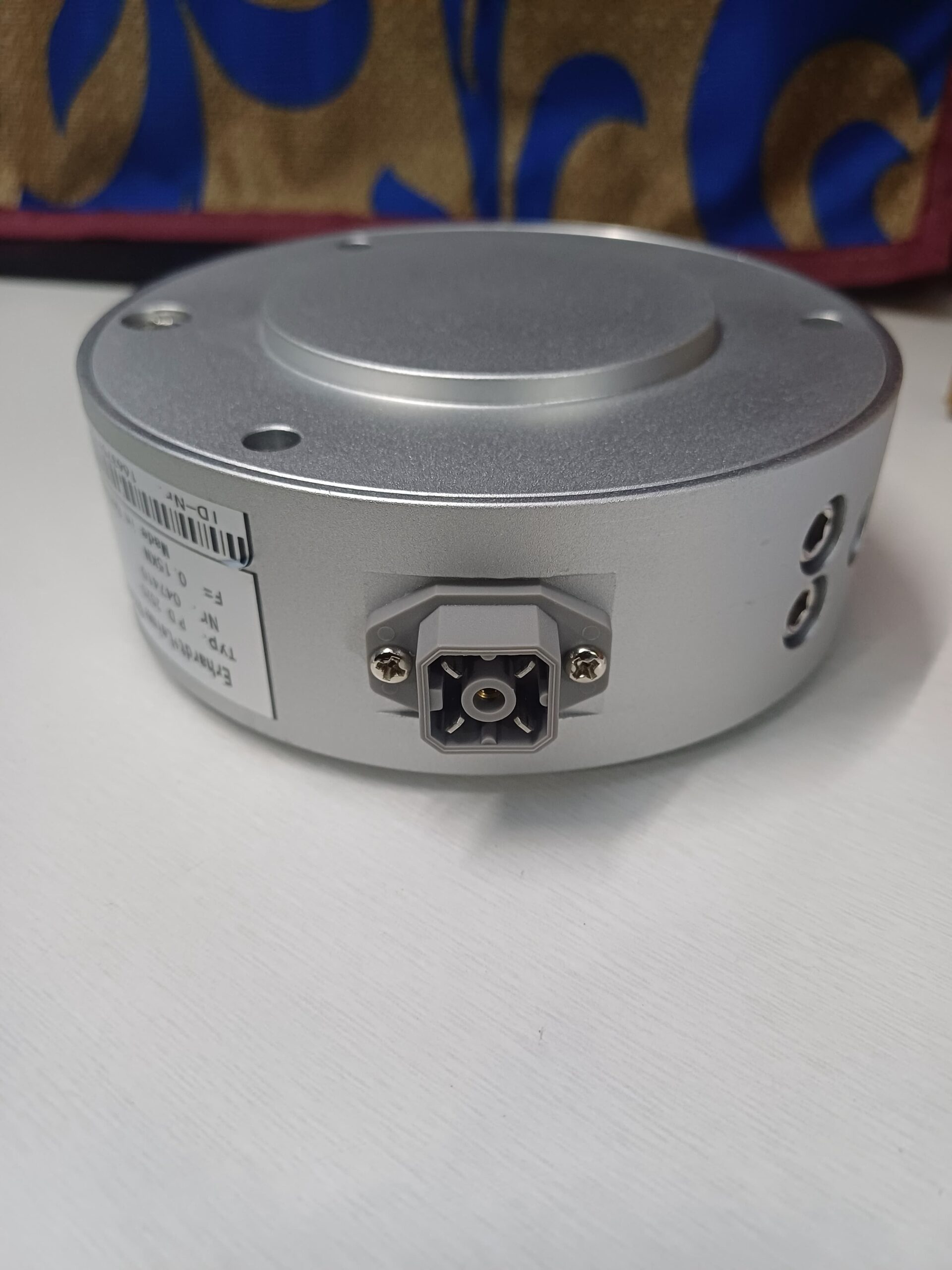

The Erhardt+Leimer PD 2525 flange load cell is used in industrial applications for precise tension measurement in processes like web handling, where controlling the tension of moving materials (such as paper, plastic films, textiles, etc.) is critical.

SPECIFICATION

• Tension Measurement:
  • Designed to accurately measure web tension, providing real-time feedback to tension control systems.
• Flange Mounting:
  • The load cell is typically flange-mounted, making it suitable for easy integration into existing roll stands, machine frames, or guide rollers in various processing lines.

FEATURES

• Robust Construction:
  • Built for durability, the load cell can withstand harsh industrial environments, ensuring long-term reliability.
• High Accuracy:
  • Provides precise tension measurement, which is critical in maintaining consistent product quality during processes like printing, coating, and laminating.
• Output Signal:
  • Typically provides an analog or digital output signal compatible with tension control systems, allowing for automated adjustments to ensure consistent tension.
• Wide Application Range:
  • Used in industries such as packaging, textile, printing, and converting, where maintaining consistent tension is crucial for quality control.
