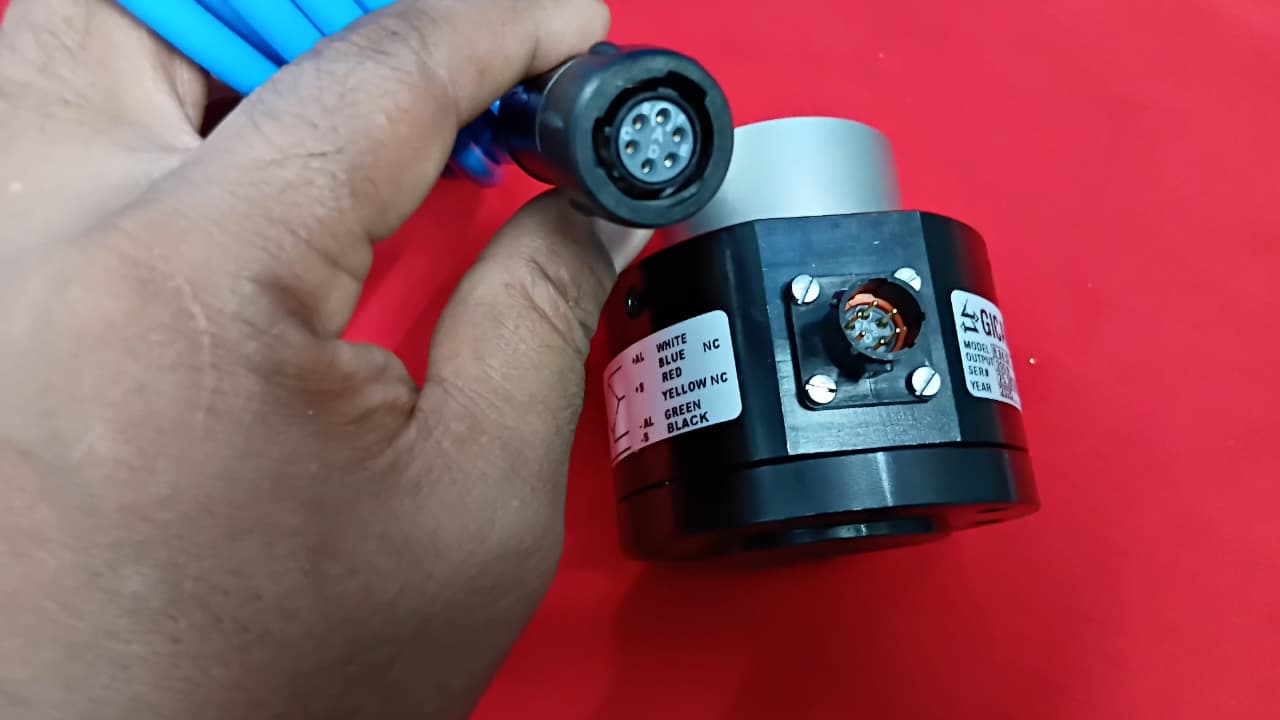

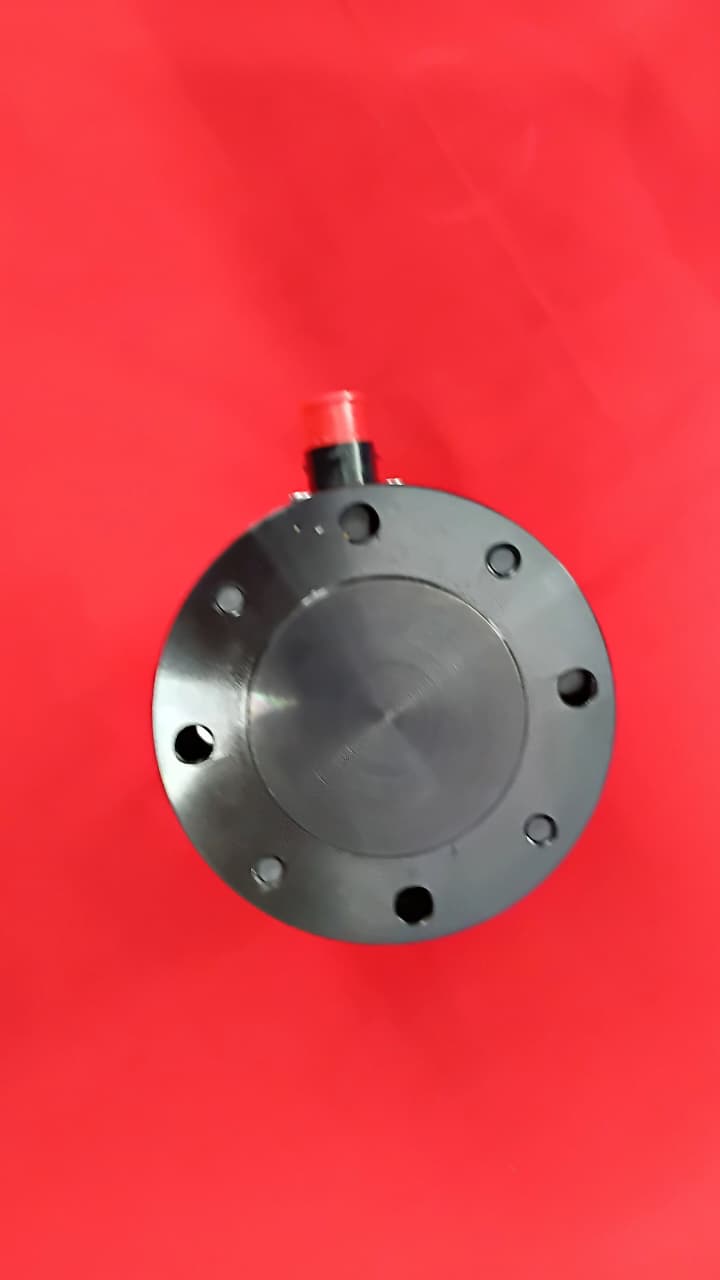

GICAM Load Cell R84CR
GICAM Load Cell R84CR
The GICAM Load Cell R84CR is a high-performance sensor designed for precise tension measurement in web handling applications, making it an essential component in textile automation spare parts. It is widely used in textile machines to monitor and control the tension of fabrics, ensuring smooth and accurate processing. This load cell helps prevent fabric defects, improve production quality, and extend machine life.
Built with corrosion-resistant stainless steel, the R84CR is ideal for harsh environments, including those with dust, humidity, and mechanical stress. Its compact design allows easy integration into limited spaces, making it suitable for both new machines and as a textile machinery spare part replacement. The R84CR supports various mounting configurations and works seamlessly with modern industrial automation systems like PLC and SCADA.
Known for reliability, accuracy, and durability, the GICAM R84CR is trusted by automation professionals across the textile industry. It plays a key role in achieving better process control, higher productivity, and consistent fabric quality.
OVERVIEW
The GICAM Load Cell R84CR is a compact and reliable sensor used in industrial automation for precise tension measurement. It is widely applied in the textile industry as a trusted textile automation spare part, helping control fabric tension in machines to ensure smooth and accurate operation. Made from strong, corrosion-resistant stainless steel, it performs well in tough industrial environments. Its small size allows easy installation, even in limited spaces. As a valuable textile machinery spare part, the R84CR integrates seamlessly with PLC and SCADA systems, offering high accuracy, durability, and stable performance in modern automation setups.
SPECIFICATION
Technical Specifications
Material Steel / Stainless steel
Nominal load 50, 100, 200, 250, 350, 500, 750, 1000 N
Limit load 300 % F.S.
Breaking load 500 % F.S.
Nominal load deflection 0,12 mm
Supply voltage Maximum 18 V dc
Sensitivity 2 mV/V
Output tollerance 0,1 % F.S.
Zero tollerance 1 % F.S.
Linearity 0,1 % F.S.
Hysteresis 0,05 % F.S.
Reapeatability 0,1 % F.S.
Input resistance 350-360 ohm
Output resistance 350-353 ohm
Insulation resistance >= 2000 Mohm
Creep (30 Minutes) 0,03 % F.S.
Thermal compensation -10 / +40°C (14 / +104°F)
Operating temperature -20 / +70°C (-4 / +158°F)
Temperature deviation zero 0,003 % F.S. / °C
Temperature deviation full scale 0,002 % F.S. / °C
Protection class IP 54
Nominal load 50 N 100 N 250 N 350 N 500 N 750 N 1000 N
Connection Panel male connector UTS08E4P
Standard cable length Loose female connector UTS6JC8E4S, connection cable 4 x 0,25 (length to be defined)
FEATURES
The GICAM Load Cell R84CR offers advanced features that make it ideal for industrial automation and the textile industry. It provides high-precision tension measurement, essential for maintaining consistent fabric quality. Designed as a reliable textile automation spare part, it is compact and easy to install, even in machines with limited space. Made from corrosion-resistant stainless steel, it ensures long-lasting performance in harsh industrial environments. The R84CR is also a valuable textile machinery spare part, offering excellent durability and minimal maintenance. It integrates smoothly with PLC and SCADA systems, supporting real-time monitoring and control. Its stability and reliability make it a top choice for modern automation systems.
