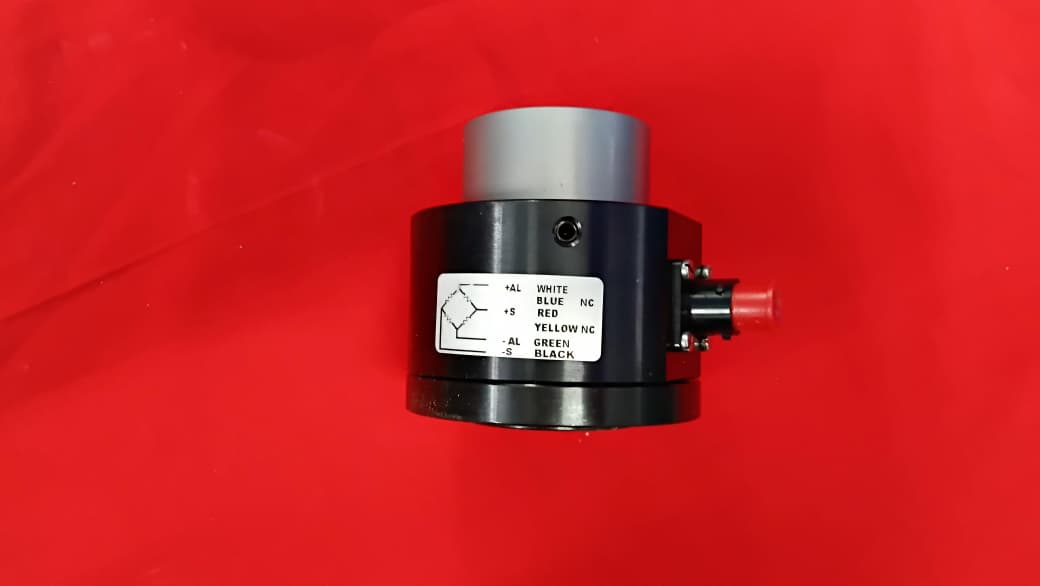

GICAM LOAD CELLS R 84 CR
GICAM LOAD CELLS R 84 CR
The GICAM Load Cell R84 CR is a high-quality product designed to deliver accurate and reliable results in industrial applications, especially in textile dyeing machinery parts. Made in Italy, this load cell is built with stainless steel for superior strength, corrosion resistance, and long service life. Its compact design allows easy installation, even in limited spaces, making it ideal for modern dyeing machines and process control systems.
The R84 CR model ensures precise weight and tension measurement, helping textile manufacturers maintain consistent dyeing quality and reduce material waste. Its advanced technology provides stable performance even in humid or high-temperature environments commonly found in dyeing plants.
As a trusted supplier of textile dyeing machinery parts, GICAM focuses on innovation, precision, and durability to support textile industries worldwide. The R84 CR load cell stands as a perfect example of Italian engineering excellence, ensuring smooth operation, efficiency, and reliability in every production cycle.
OVERVIEW
The GICAM Load Cell R84 CR is an advanced Italian-engineered sensor designed for accurate measurement in textile dyeing machinery parts. Built with high-grade stainless steel, it offers excellent durability, corrosion resistance, and long-term performance, even under harsh industrial conditions. Its compact and robust design makes it suitable for easy installation in dyeing machines, ensuring precise load and tension control during operations.
The R84 CR helps textile manufacturers achieve consistent dyeing quality by providing stable and accurate readings that improve process control and efficiency. It performs reliably in challenging environments with heat, moisture, and vibration, ensuring smooth machine performance and reduced downtime.
As a trusted name in textile dyeing machinery parts, GICAM continues to deliver products that combine innovation, precision, and reliability. The R84 CR load cell exemplifies GICAM’s commitment to supporting the textile industry with cutting-edge technology and superior engineering.
SPECIFICATION
Material: Steel / Stainless Steel.
Nominal loads available: 50 N, 100 N, 200 N, 250 N, 350 N, 500 N, 750 N, 1000 N.
Limit load: 300 % of full scale (F.S.).
Breaking load: 500 % of full scale.
Nominal load deflection: 0.12 mm.
Supply voltage: Maximum 18 V dc.
Sensitivity: 2 mV/V.
Output tolerance: ±0.1 % F.S.
Zero tolerance: ±1 % F.S.
Linearity: ±0.1 % F.S.
Hysteresis: ±0.05 % F.S.
Repeatability: ±0.1 % F.S.
Input resistance: 350-360 Ω; Output resistance: 350-353 Ω.
Insulation resistance: ≥ 2000 MΩ.
Creep (30 minutes): 0.03 % F.S.
Thermal compensation: −10 °C to +40 °C.
Operating temperature range: −20 °C to +70 °C.
Temperature deviation (zero): 0.003 % F.S. / °C.
Temperature deviation (full scale): 0.002 % F.S. / °C.
Protection class: IP 54.
Standard connection: Panel male connector UTS08E4P; cable 4 × 0.25 mm²
FEATURES
Compact, easy-to-install design ideal for integration into dyeing machines and tight spaces.
Made of steel and stainless steel for corrosion resistance and durability in harsh industrial environments (humidity, chemical exposure in textile dyeing plants).
Ability to rotate the sensitive body ±18° to align the roll, making it flexible for tension measurement in re-rollers or dyeing machine roll systems.
Overload protection built into the design, safeguarding the sensor from excessive force or tension spikes typical in textile processing.
Excellent measurement stability and repeatability (linearity ±0.1 % F.S., repeatability ±0.1 % F.S.), aiding consistent fabric tension control in dyeing operations.
Suitable for integration with automation systems (PLC/SCADA) for real-time monitoring and control of tension/force in textile dyeing lines.
Protection rating IP54 ensures moderate resistance to dust and splashing – beneficial in dyeing environments with steam, mist or fibre debris.
