OVERVIEW

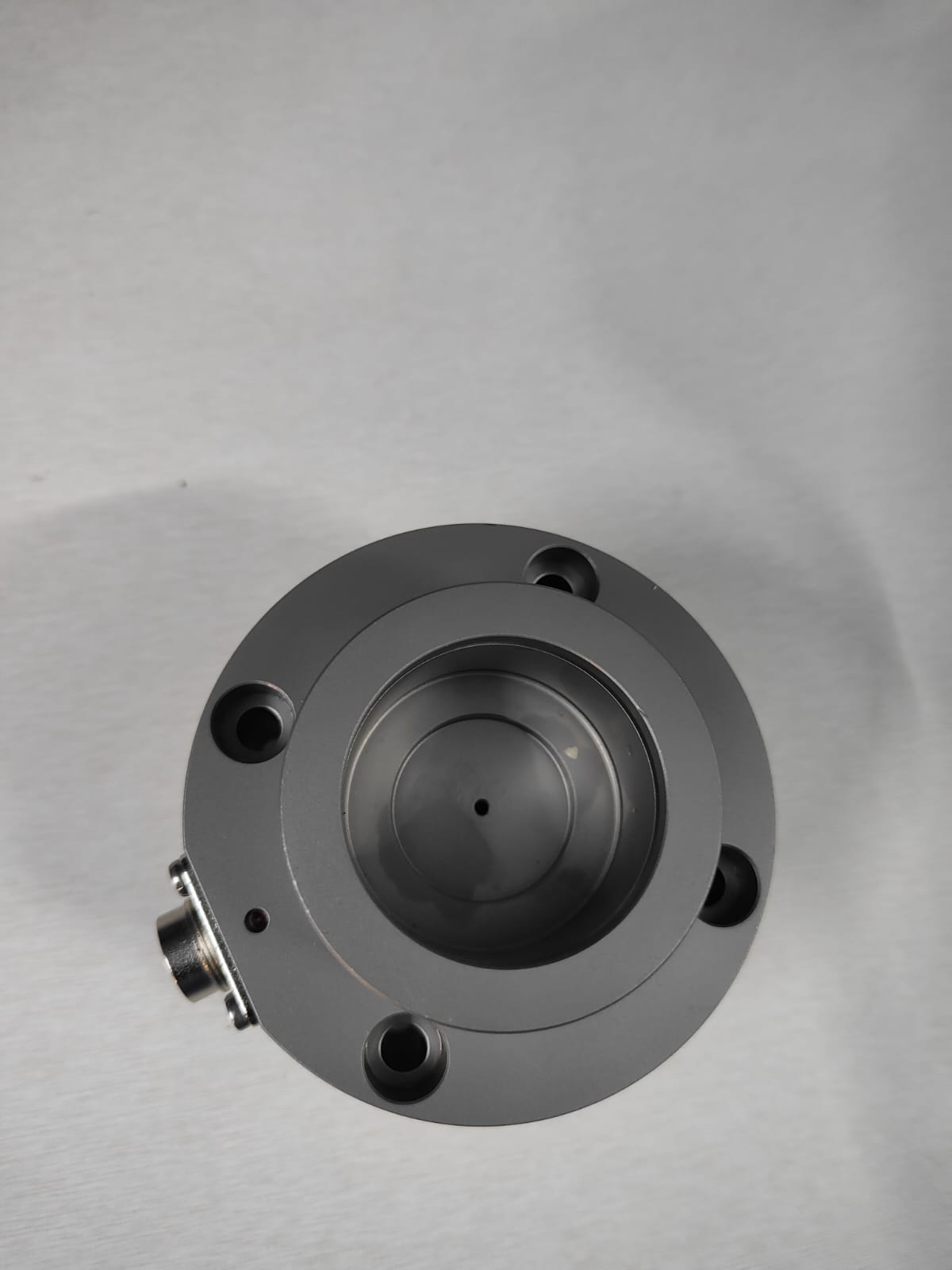

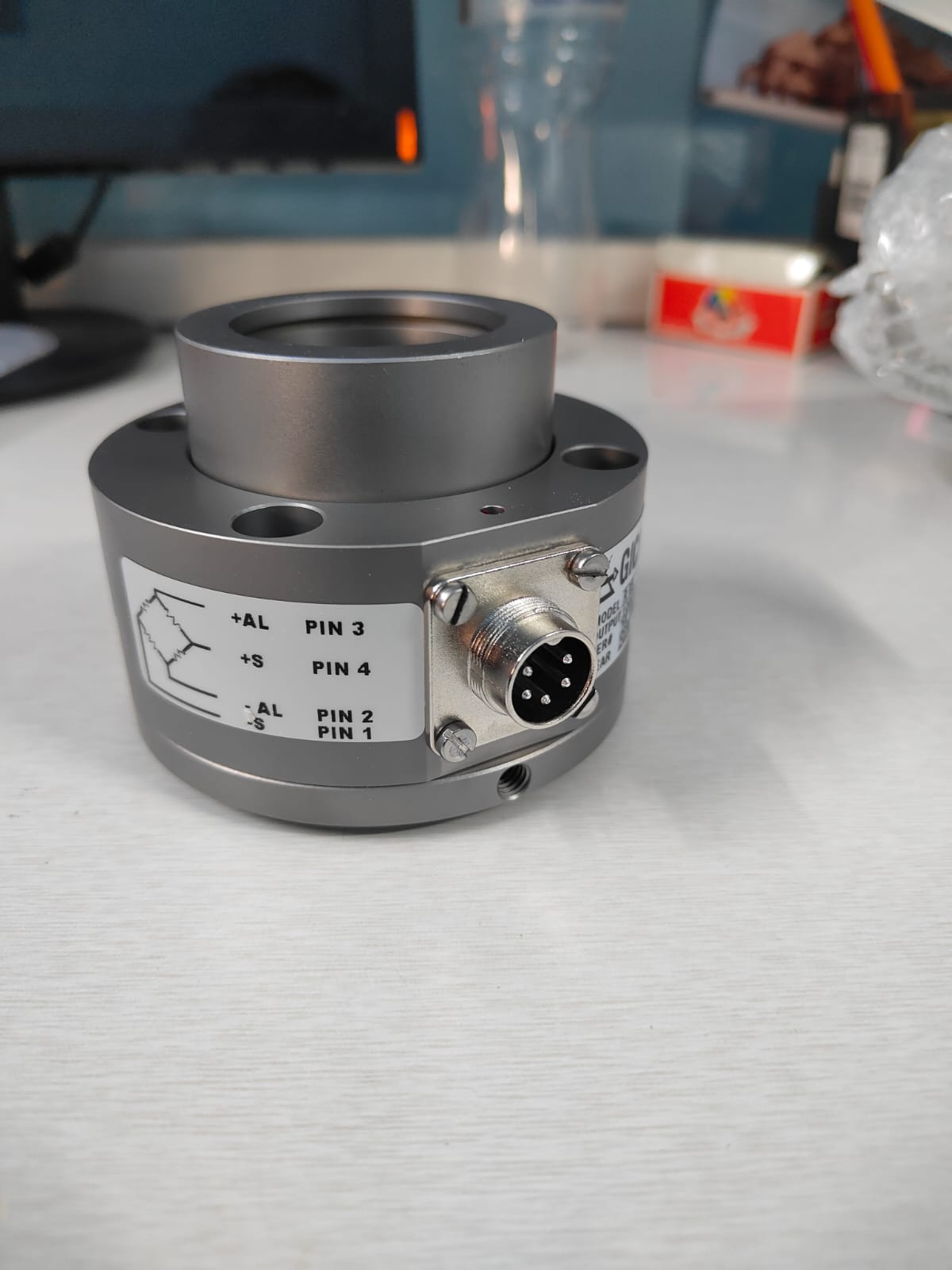

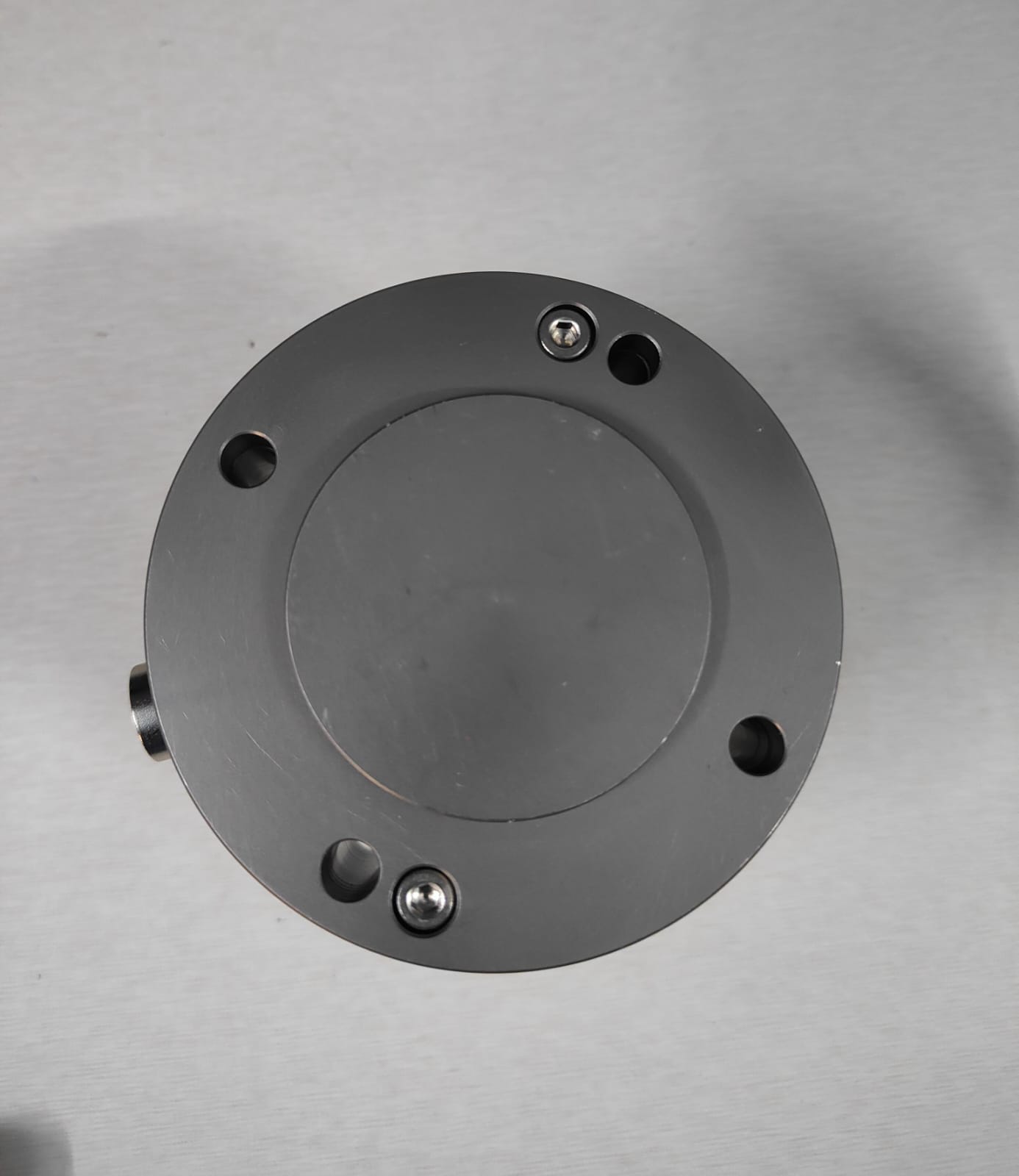

The GICAM LOAD CELL R 85 is a high-performance load cell widely used in the textile dyeing industry and other industrial applications where precise tension and force measurement is essential. Known for its durability, accuracy, and easy integration, this load cell is a preferred choice for textile machinery and automation systems.

Specially designed for harsh industrial environments, the GICAM LOAD CELL R 85 ensures stable and reliable performance under high temperatures and heavy loads. It is often used as a critical component among textile dyeing spare parts, helping maintain consistent fabric tension during processes such as dyeing, washing, and finishing. This leads to better fabric quality, reduced waste, and more efficient operations.

The R 85 model stands out due to its compact design, easy mounting, and low maintenance needs. It is built using strong materials that ensure a long service life even in demanding working conditions. Its accuracy makes it suitable for various industrial applications, including packaging, automation, and textile production lines.

For companies looking to improve productivity and quality, the GICAM LOAD CELL R 85 is a dependable solution that delivers both performance and value.

SPECIFICATION

The GICAM LOAD CELL R 85 is a robust load cell used extensively as textile dyeing spare parts and in other industrial applications for accurate tension and force measurement.

Material: Stainless steel (sometimes steel with stainless components) – corrosion‑resistant and durable

Nominal load (capacity): Available in 150 N, 250 N, 350 N, 500 N, 750 N, 1000 N (upgradable to 50–1000 kg range)

Limit load: Up to 300 % of full scale before permanent deformation

Breaking load: Withstands up to 1000 % of full scale

Transversal load capacity: Supports up to 500 % of full scale

Nominal deflection: ~0.12 mm under full load

Electrical specs:

Input/output resistance: ~350–360 Ω

Output signal: ~1–1.8 mV/V (max supply voltage ~18 Vdc)

Accuracy:

Output tolerance: ±0.1 % F.S.

Zero balance: ±1 % F.S.

Linearity: ±0.1 % F.S.

Hysteresis: ~0.03 % F.S.

Repeatability: ~0.1 % F.S.

Creep (30 min): ~0.03 % F.S.

Insulation resistance: ≥ 2000 MΩ

Construction: Compact stainless‑steel roller design with optional lateral grease access; easy mounting and built‑in overload protection

This GICAM LOAD CELL R 85 is a dependable choice among industrial applications and especially valued as a textile dyeing spare part due to its high precision, durability, and ease of integration.

FEATURES

The GICAM LOAD CELL R 85 offers a range of advanced features that make it ideal for industrial applications, especially in the textile dyeing industry. Designed for accurate and reliable force measurement, this load cell ensures optimal machine performance and product quality.

Key features include:

High accuracy and sensitivity, providing precise tension control during textile processes.

Robust stainless-steel construction, making it resistant to corrosion, moisture, and harsh working environments.

Compact and lightweight design, allowing for easy installation in tight spaces without compromising performance.

Maintenance-free operation, reducing downtime and ensuring smooth production.

Compatibility with a wide range of textile machinery, making it a valuable textile dyeing spare part for modern setups.

Temperature and overload protection, enhancing safety and extending product life.

The GICAM LOAD CELL R 85 is suitable for various industrial applications beyond textiles, including packaging, automation, and mechanical testing.

Its reliability and precision make it a preferred choice for industries that demand consistent load measurement and control.
