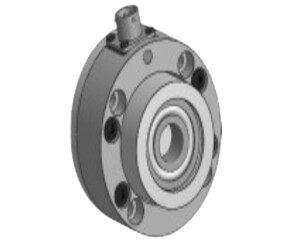

GICAM Roll load cell R85
GICAM Roll load cell R85
The GICAM Roll Load Cells R85 are high-precision sensors designed for tension measurement in web handling applications, making them ideal for textile automation spare parts. These load cells are commonly used in machines that process fabrics, films, paper, and other rolled materials. In the textile industry, accurate tension control is essential to maintain fabric quality and reduce material waste, and the GICAM R85 helps achieve that with excellent reliability.
Built with strong stainless steel housing, the R85 is resistant to harsh conditions such as dust, humidity, and mechanical stress, making it perfect for continuous industrial use. It easily integrates with control systems like PLC and SCADA, supporting smooth operation in modern industrial automation setups. As a part of textile machinery spare parts, the GICAM R85 is trusted by engineers for both new installations and system upgrades. It ensures precise web tension, boosting machine performance and product consistency.
OVERVIEW
The GICAM Roll Load Cells R85 are advanced sensors used to measure web tension in machines that handle fabric, film, or paper. These load cells are widely used as essential textile automation spare parts and are ideal for maintaining consistent tension in textile processes. Their strong, stainless steel build ensures long-lasting performance in tough environments.
As part of reliable textile machinery spare parts, the R85 offers high precision and stability, improving product quality and reducing machine wear. It easily integrates with industrial automation systems like PLCs and SCADA for efficient process control. Trusted by professionals, the GICAM R85 helps optimize performance in modern textile and industrial applications.
SPECIFICATION
Material Stainless steel+Steel
Nominal load 150, 250, 350, 500, 750, 1000
Breaking load 300 % of full scale
Maximum transversal load 500 % of full scale
Nominal load deflection 0,12 mm
Supply voltage Maximum 18 V dc
Output 1 mV/V
Output tollerance 0,1 % F.S.
Zero tollerance 1 % F.S.
Linearity 0,1 % F.S.
Hysteresis 0,03 % F.S.
Reapeatability 0,1 % F.S.
Input resistance 350-360 ohm
Output resistance 350-353 ohm
Insulation resistance >= 2000 Mohm
Creep (30 Minutes) 0,03 % F.S.
Thermal compensation -10 / +40°C (14 / +104°F)
Operating temperature -20 / +70°C (-4 / +158°F)
Temperature deviation zero 0,003 % F.S. / °C
Temperature deviation full scale 0,002 % F.S. / °C
Protection class IP 54
Connection Panel male connector UTS08E4P
Standard cable length Loose female connector UTS6JC8E4S, connection cable 4 x 0,25 (length to be defined)
FEATURES
The GICAM Roll Load Cells R85 offer several advanced features that make them ideal for industrial automation, especially as textile automation spare parts and textile machinery spare parts. These load cells provide high accuracy in measuring web tension, ensuring better fabric handling and product quality. Built with stainless steel, they are strong, corrosion-resistant, and suitable for harsh industrial environments. The R85 is easy to install and integrates well with PLC and SCADA systems. It offers stable performance with minimal maintenance, helping reduce downtime. With compact design and long service life, the GICAM R85 is perfect for modern automation needs.
