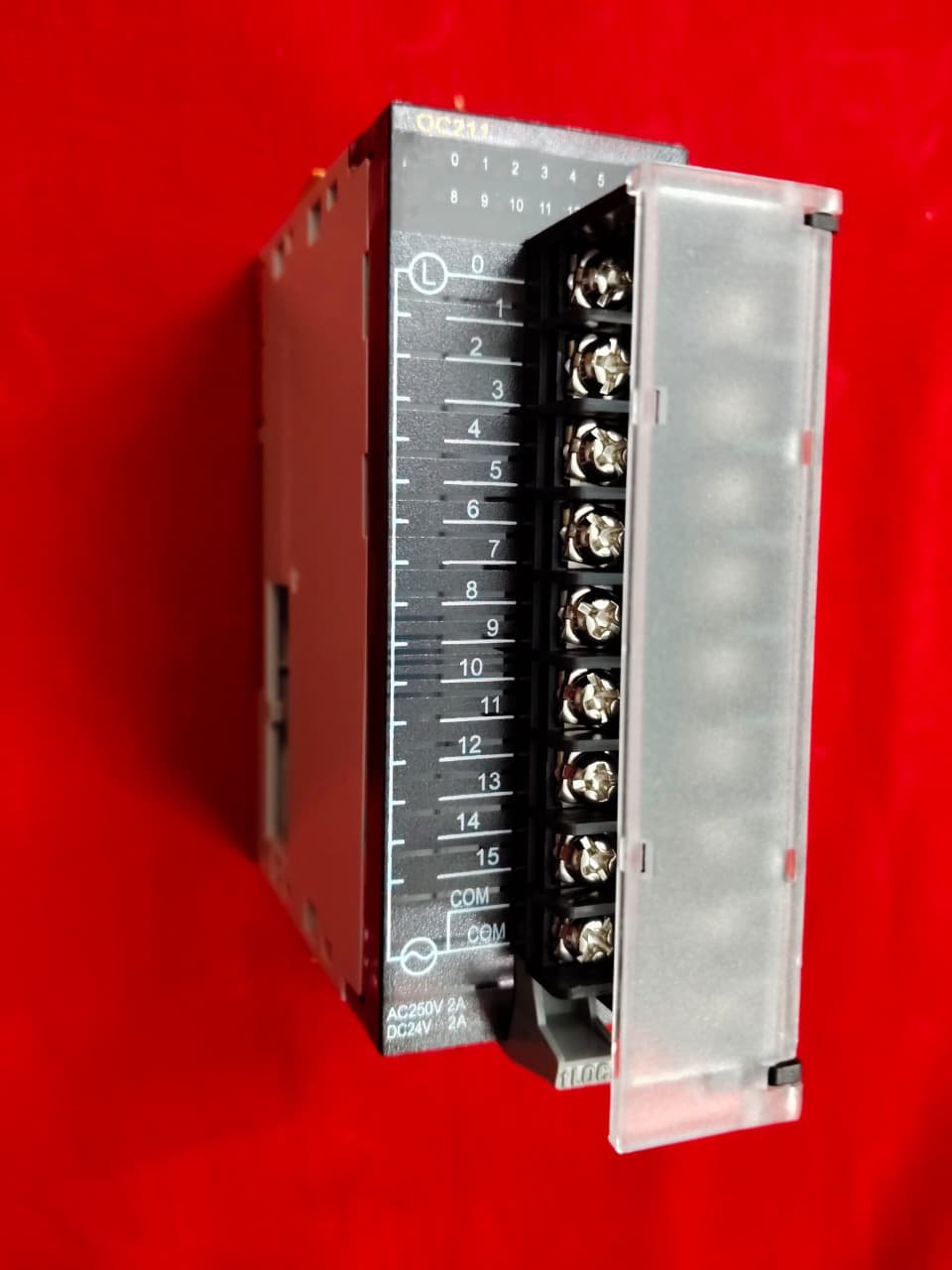

Omron CJ1W-OC211 16-Point Digital Relay Output Unit
Omron CJ1W-OC211 16-Point Digital Relay Output Unit
The Omron CJ1W-OC211 is a reliable Digital Relay Output Unit designed for Omron CJ-series PLC systems. It provides 16 relay output points for controlling external devices and electrical loads in automated machines. The module allows a PLC program to switch connected equipment such as contactors, solenoid valves, lamps, relays, and other control devices. In Industrial Automation, the Omron CJ1W-OC211 helps connect PLC control logic with field-level equipment. Its relay-based outputs are suitable for applications where different types of external loads need dependable switching. The unit can be used in textile machinery, packaging equipment, material-handling systems, process-control machines, and other automated production equipment. The Digital Relay Output Unit is designed for integration into compatible CJ-series PLC configurations. Its 16-point output arrangement provides multiple control channels within a single compact module, helping simplify machine wiring and control-panel installation. The Omron CJ1W-OC211 is a practical choice for automation systems requiring reliable digital relay switching. It supports efficient machine control and can contribute to dependable operation in modern Industrial Automation applications.
OVERVIEW
The Omron CJ1W-OC211 is a 16-point Digital Relay Output Unit designed for use with compatible Omron CJ-series PLC systems. It provides multiple relay output channels that allow the PLC to control external electrical devices and machine components. The relay outputs can be used for switching suitable loads such as contactors, solenoid valves, indicator lamps, relays, and other industrial control devices.
In Industrial Automation, the Omron CJ1W-OC211 provides a practical connection between the PLC control program and field equipment. It can be used in textile machinery, packaging machines, conveyors, material-handling equipment, process-control systems, and automated production lines. Its 16 output points allow several devices to be controlled from one compact PLC module.
The Digital Relay Output Unit is designed for integration into a compatible CJ-series PLC rack, making it suitable for centralized machine-control applications. Relay-based outputs offer flexible switching for various control circuits when operated within their specified electrical ratings.
Overall, the Omron CJ1W-OC211 is a useful PLC output module for reliable device switching and efficient Industrial Automation applications requiring multiple digital relay outputs.
SPECIFICATION
Brand Omron
Model CJ1W-OC211
Product Type Digital Relay Output Unit
PLC Series CJ Series
Number of Output Points 16 points
Output Type Relay
Output Configuration Relay contact outputs
Rated Load Voltage 250 V AC / 24 V DC*
Output Current 2 A per point*
Common Configuration Multiple output commons
Isolation Photocoupler / relay isolation
Mounting CJ-series PLC rack/backplane
Application Industrial Automation
Typical Uses Solenoid valves, contactors, lamps, relays and machine actuators
Programming Controlled through the connected Omron PLC CPU
Communication CJ-series backplane bus
Main Function Switching external devices through PLC relay outputs
FEATURES
The Omron CJ1W-OC211 is a reliable 16-point Digital Relay Output Unit designed for compatible Omron CJ-series PLC systems. It provides multiple relay output channels for controlling external devices used in automated machines and industrial equipment.
One of the main features of the Omron CJ1W-OC211 is its 16 relay output points, allowing several field devices to be controlled from a single compact module. The relay outputs can be used for suitable loads such as contactors, solenoid valves, indicator lamps, relays, and other machine-control devices.
In Industrial Automation, the module provides a convenient interface between PLC control logic and field equipment. It is suitable for textile machinery, packaging systems, conveyors, process-control equipment, and automated production lines. The Digital Relay Output Unit can help simplify machine wiring and provide dependable switching for compatible loads.
The CJ1W-OC211 is designed for integration into a suitable CJ-series PLC rack. Its compact construction supports organized control-panel installation. Overall, the Omron CJ1W-OC211 is a practical solution for reliable digital output switching in modern Industrial Automation systems.
