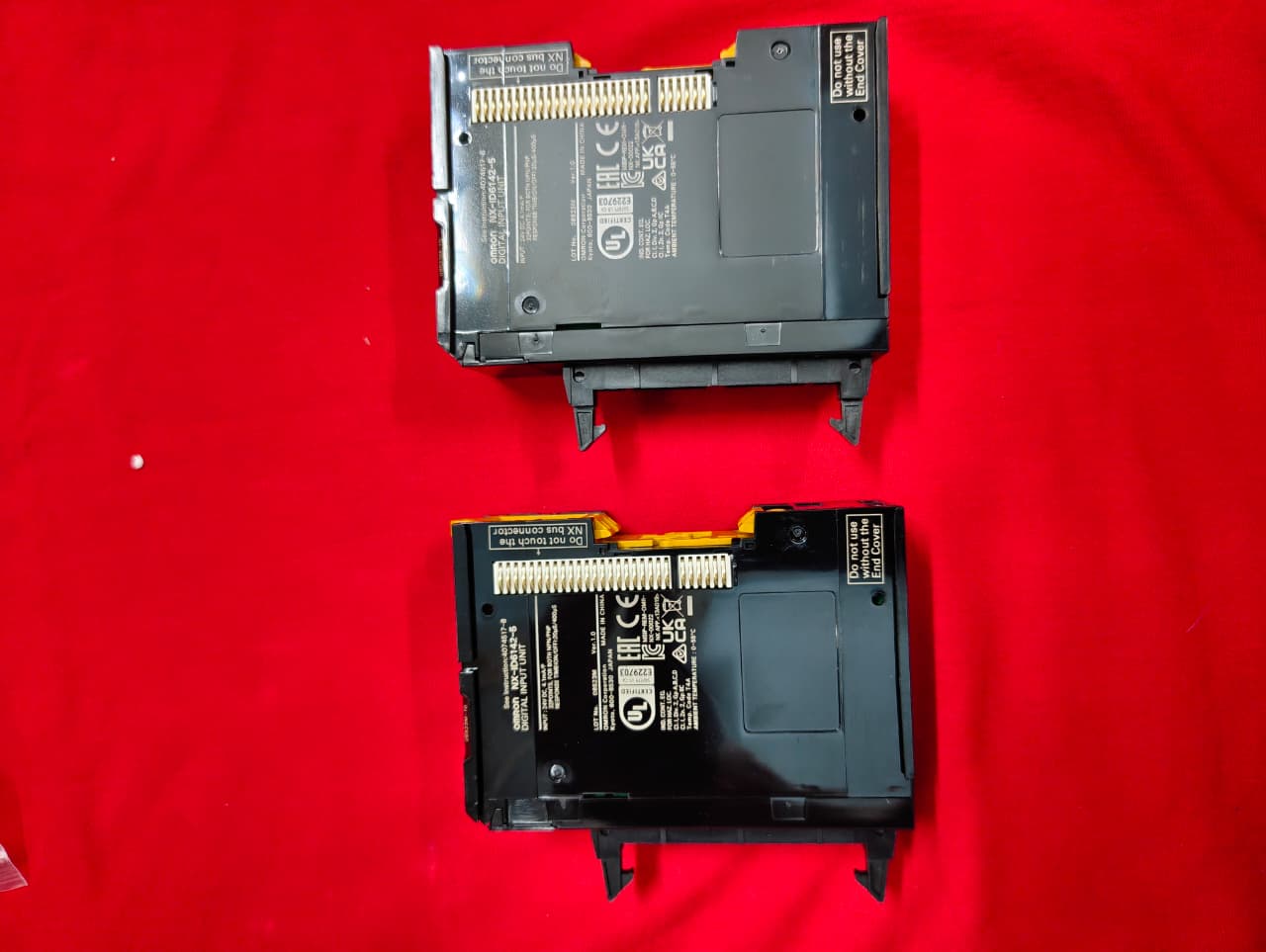

Omron PLC NX-ID6142-5
Omron PLC NX-ID6142-5
The Omron Omron PLC NX-ID6142-5 is a reliable digital input module used in modern PLC systems for industrial automation. This Omron PLC module is designed to receive input signals from sensors and switches, helping machines operate smoothly and accurately. The NX-ID6142-5 supports multiple digital inputs, making it suitable for complex automation tasks. It is widely used in industries like textiles, where precise control is important. In applications involving textile dyeing machinery spares, this module helps monitor signals from different parts of the machine, ensuring proper operation and safety. The Omron PLC module is compact in design and easy to install, which saves space in control panels. It offers fast response time and stable performance, improving the efficiency of automation systems. Built with high-quality materials, it ensures long service life and low maintenance. Overall, the Omron PLC NX-ID6142-5 is a dependable solution for industrial automation, especially in systems using textile dyeing machinery spares, where accuracy and reliability are essential.
OVERVIEW
The Omron Omron PLC NX-ID6142-5 is a high-performance digital input module designed for advanced PLC automation systems. This Omron PLC module is used to receive and process input signals from sensors, switches, and other field devices, ensuring accurate and reliable machine operation.
The NX-ID6142-5 is part of the Omron NX series, known for fast response time and stable performance. It supports multiple digital inputs, making it suitable for complex industrial applications. In textile industries, especially where textile dyeing machinery spares are used, this module plays an important role in monitoring machine signals and improving process control.
The Omron PLC module has a compact design, allowing easy installation in control panels with limited space. It is built with high-quality components that ensure durability and long service life even in demanding environments.
Overall, the Omron PLC NX-ID6142-5 provides efficient signal processing, improved automation performance, and reliable operation, making it a valuable component in modern PLC systems and textile machinery applications.
SPECIFICATION
Product Type: Digital Input Module (Omron PLC / PLC)
Model: NX-ID6142-5
I/O System: NX I/O Bus
Number of Inputs: 32 digital inputs
Input Type: PNP / NPN (universal input)
Rated Input Voltage: 24 V DC (19 – 28.8 V DC)
Input Current: Approx. 4.1 mA at 24 V DC
ON/OFF Response Time: 20 µs (ON) / 400 µs (OFF)
Input Delay (Filter Time): Adjustable (0.25 ms to 256 ms)
Connection Type: MIL 40-pin connector
Signal Processing: Free-running / synchronous operation
Isolation Method: Photocoupler isolation
Degree of Protection: IP20
Dimensions: 30 mm (W) × 100 mm (H) × ~70–89 mm (D)
Weight: Approx. 135 g
Operating Function: Digital signal input processing (no outputs)
FEATURES
The Omron Omron PLC NX-ID6142-5 offers several advanced features that make it ideal for modern PLC automation systems and textile dyeing machinery spares applications.
One key feature of this Omron PLC module is its 32 digital input channels, which allow it to handle multiple signals from sensors and switches at the same time. It supports both PNP and NPN input types, making it flexible for different industrial setups.
The module provides fast response time, with ON/OFF switching as quick as microseconds, ensuring accurate signal detection and real-time control. Another important feature is its high-speed and synchronous signal processing, which improves system performance in automation tasks.
The Omron PLC NX-ID6142-5 has a compact 30 mm width design, saving space in control panels. It also includes photocoupler isolation, which protects the system from electrical noise and enhances reliability.
Overall, this PLC module delivers stable performance, easy integration, and efficient operation, making it highly suitable for systems using textile dyeing machinery spares.
