Pantron Receiver Amplifier ISM-1516
Pantron Receiver Amplifier ISM-1516
The Pantron Receiver Amplifier ISM-1516 from Pantron Instruments GmbH is a high-quality device designed for industrial automation and advanced sensing tasks. It is mainly used with photoelectric sensors to detect objects accurately in difficult environments. This amplifier provides stable signal processing, making it suitable for various industrial applications such as textile machines, packaging lines, and conveyor systems. The ISM-1516 is built for reliable performance in application control and automation systems, where precise detection is very important. It helps reduce errors, improves machine efficiency, and ensures smooth operation even in dusty or humid conditions. Its compact design and easy installation make it user-friendly for engineers and technicians. This receiver amplifier is widely used in textile automation processes, where continuous monitoring and control are required. Overall, the ISM-1516 is a dependable solution for modern automation needs.
OVERVIEW
The Pantron Receiver Amplifier ISM-1516 by Pantron Instruments GmbH is a reliable and efficient device used in modern industrial automation systems. It is specially designed to work with photoelectric sensors, ensuring accurate detection and stable performance in demanding environments. This amplifier is widely used in different industrial applications, including textile machinery, packaging units, and conveyor systems.
The ISM-1516 plays an important role in application control and automation systems, where precise signal processing is required for smooth machine operation. It helps improve productivity by reducing detection errors and maintaining consistent performance even in harsh conditions such as dust, moisture, and vibrations.
With its compact design and easy installation, the amplifier is suitable for continuous industrial use. It supports efficient monitoring and control, making it a valuable component in textile automation and other automated processes. Overall, it is a dependable solution for improving efficiency and reliability.
SPECIFICATION
Type: Receiver Amplifier (Opto Sensor System)
Number of Channels: 1
Operating Voltage: 24 V AC / DC
Detection Range:
Up to 20–25 m (standard)
Up to 50–70 m with high-power transmitter

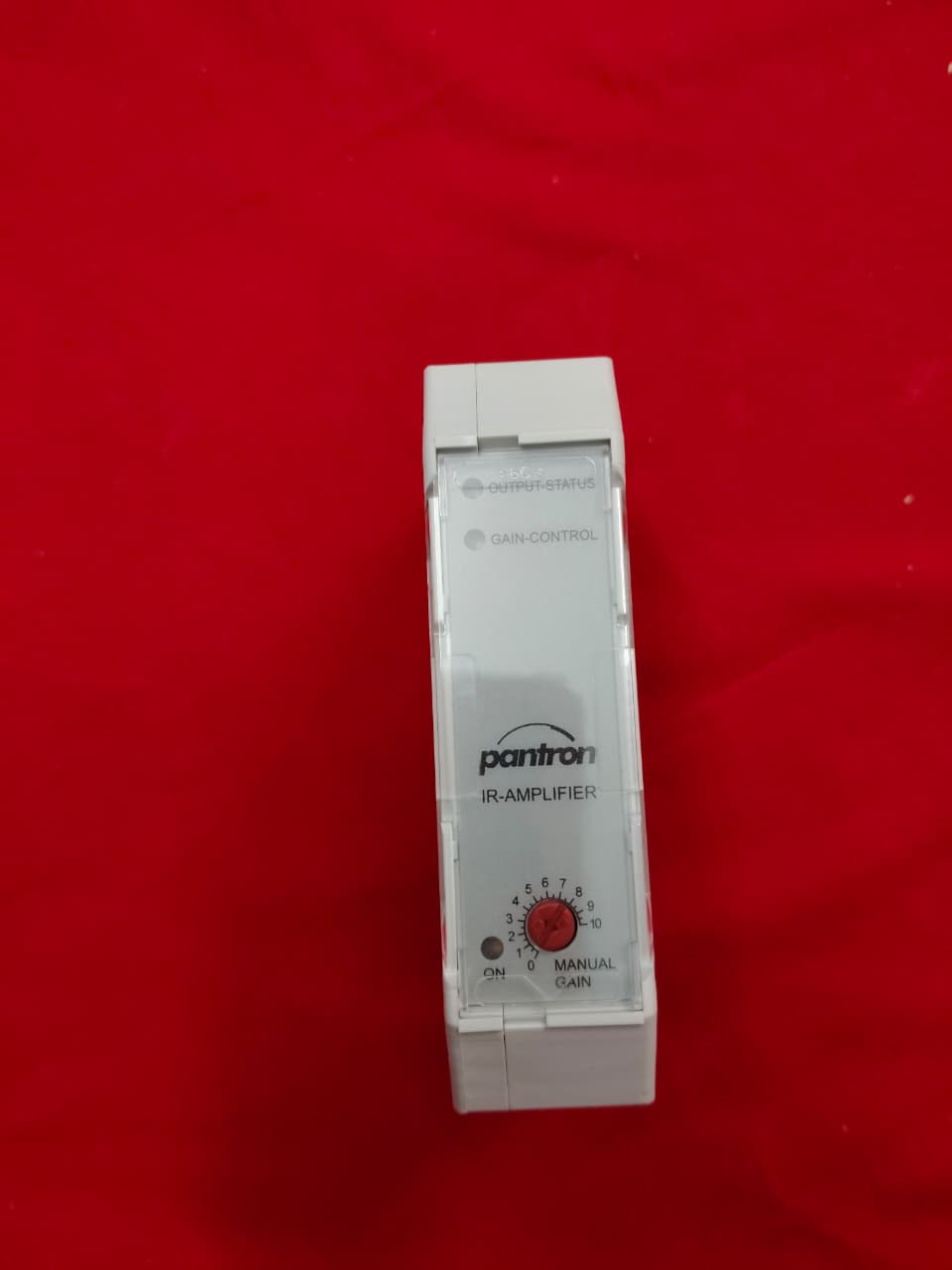

Operating Mode: Manual sensitivity adjustment
Transmit Frequency: 4.0 kHz
Response Time: 36 ms
Switching Output:
Semiconductor relay (NO contact)
Max. 60 V AC/DC, 100 mA

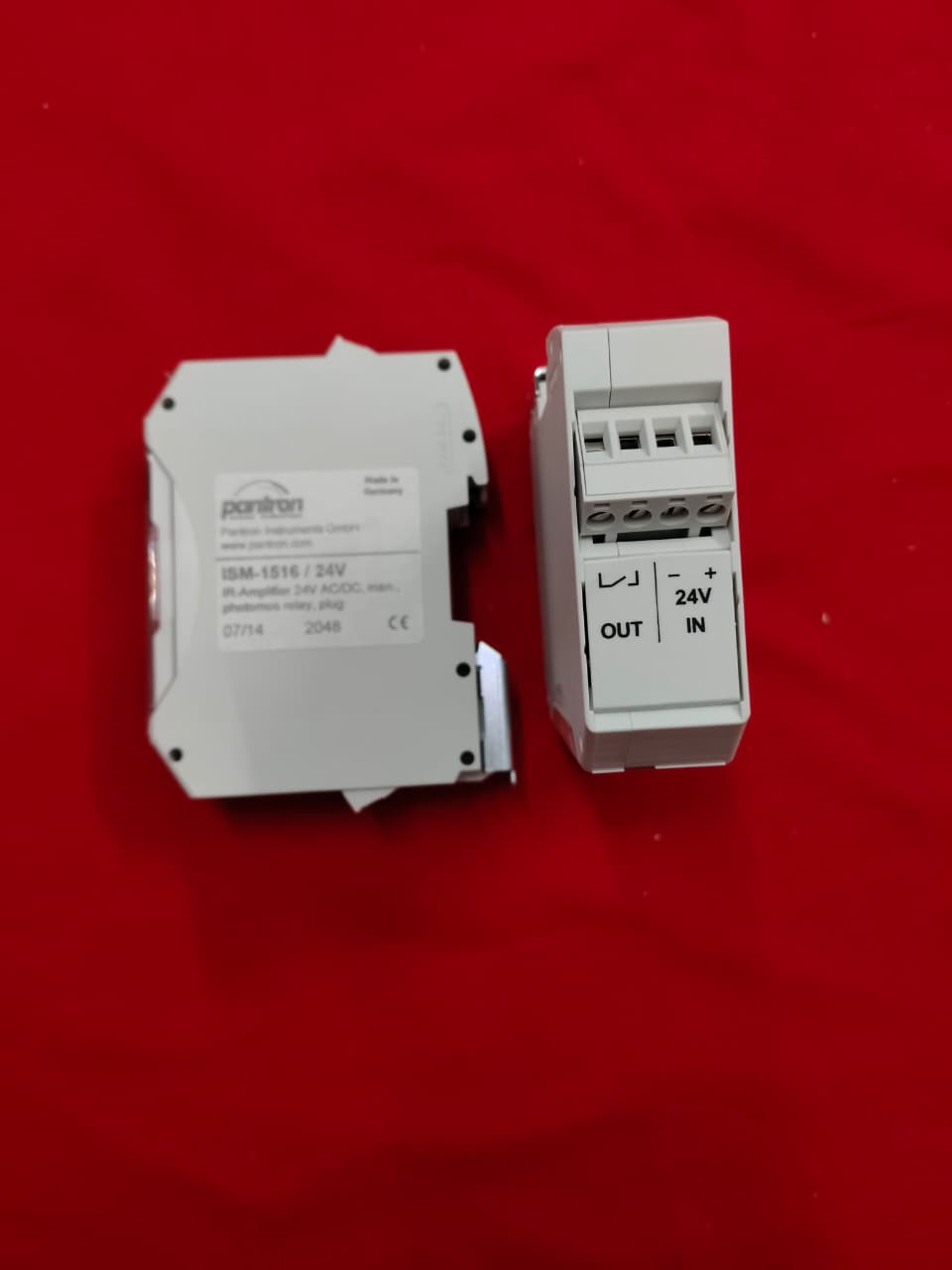

Mounting Type: DIN rail mounting
Connection Type: Plug-in / screw terminal
Housing Material: Polyamide
Protection Class: IP20
Operating Temperature: Approx. -25°C to +50°C
Detection Principle: Modulated infrared light
FEATURES
The Pantron Receiver Amplifier ISM-1516 from Pantron Instruments GmbH offers several important features that make it suitable for modern industrial automation systems. It provides highly accurate signal detection, ensuring reliable performance in demanding industrial applications such as textile machinery and conveyor systems. The amplifier supports long sensing distances, allowing effective operation even in large setups.
One key feature is its stable performance in harsh environments, including dust, moisture, and vibrations, which are common in industrial areas. It also includes adjustable sensitivity, helping users fine-tune detection based on specific needs in application control and automation systems. The device has a fast response time, which improves system efficiency and reduces operational delays.
Its compact design and easy DIN rail mounting make installation simple and convenient. The ISM-1516 also ensures low maintenance and long service life, making it a cost-effective solution for continuous industrial use in automation processes.
