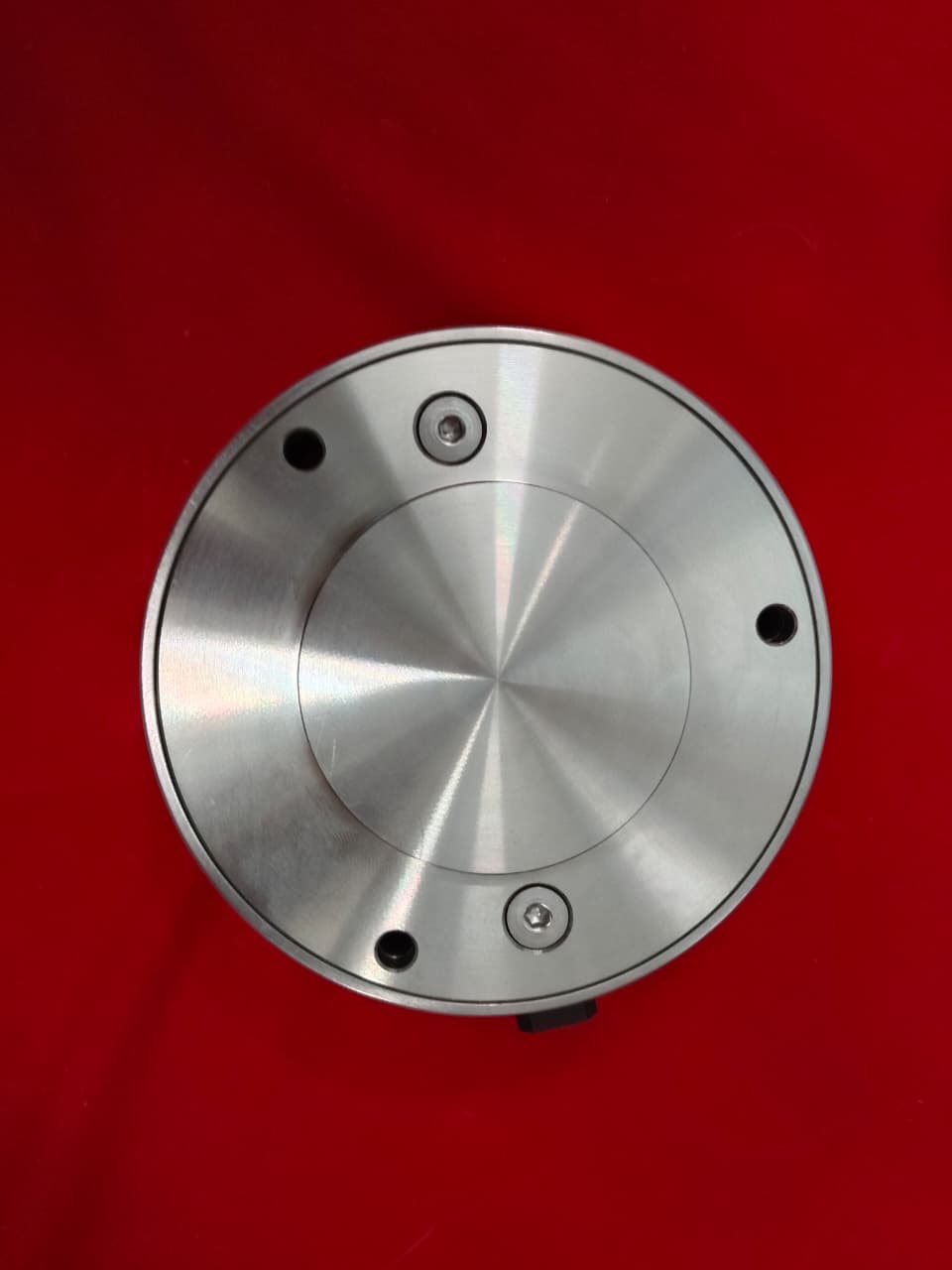

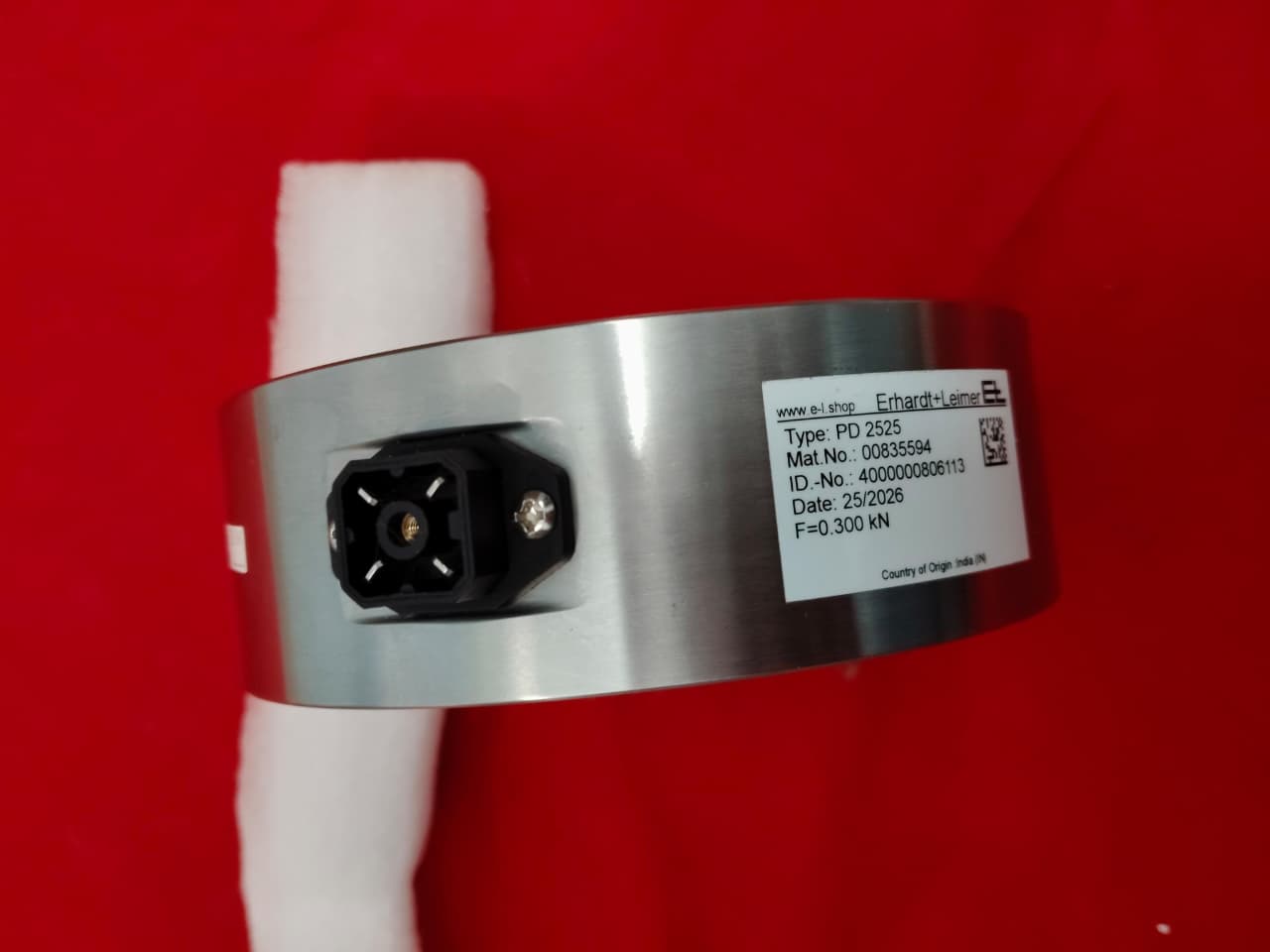

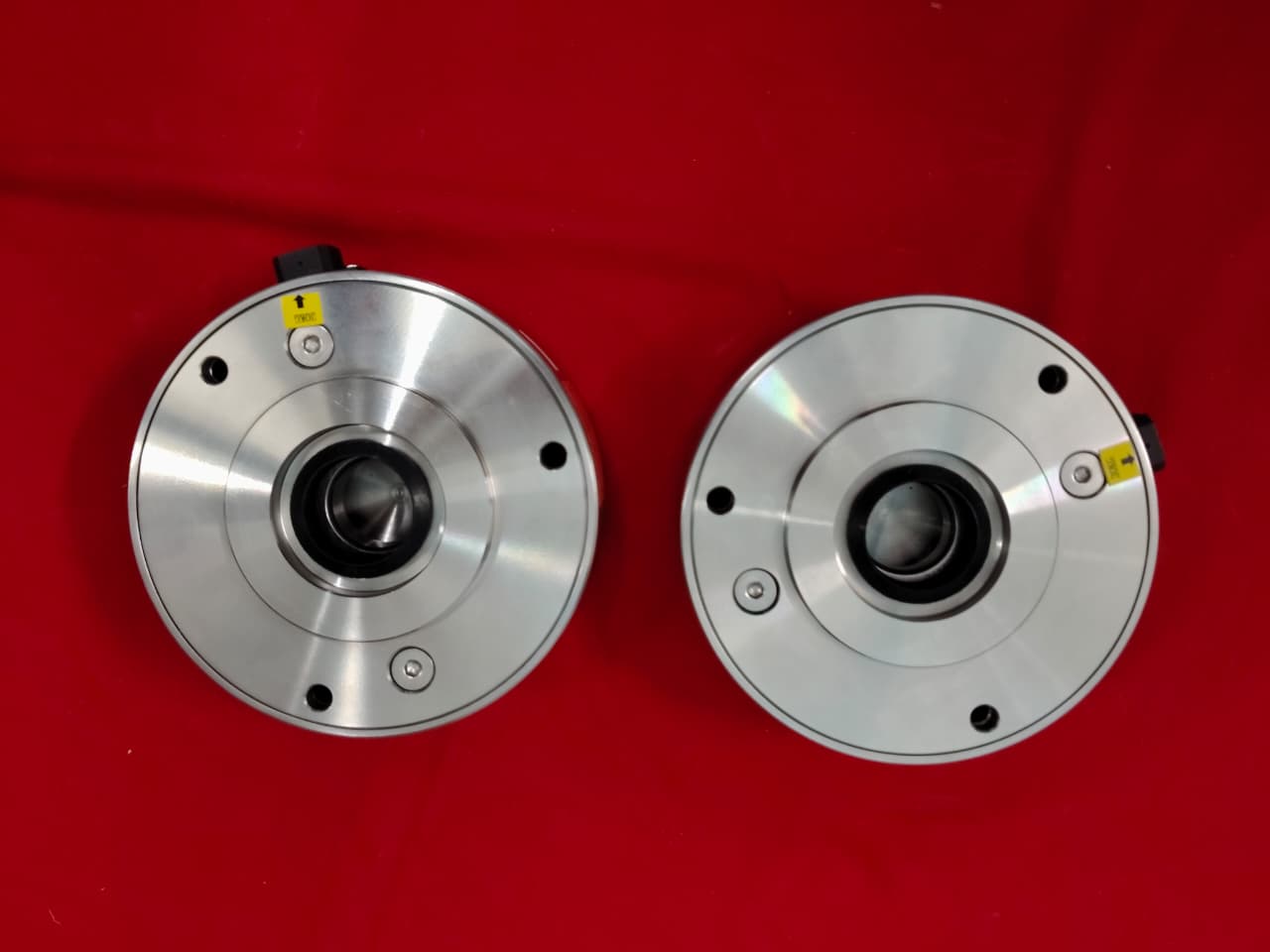

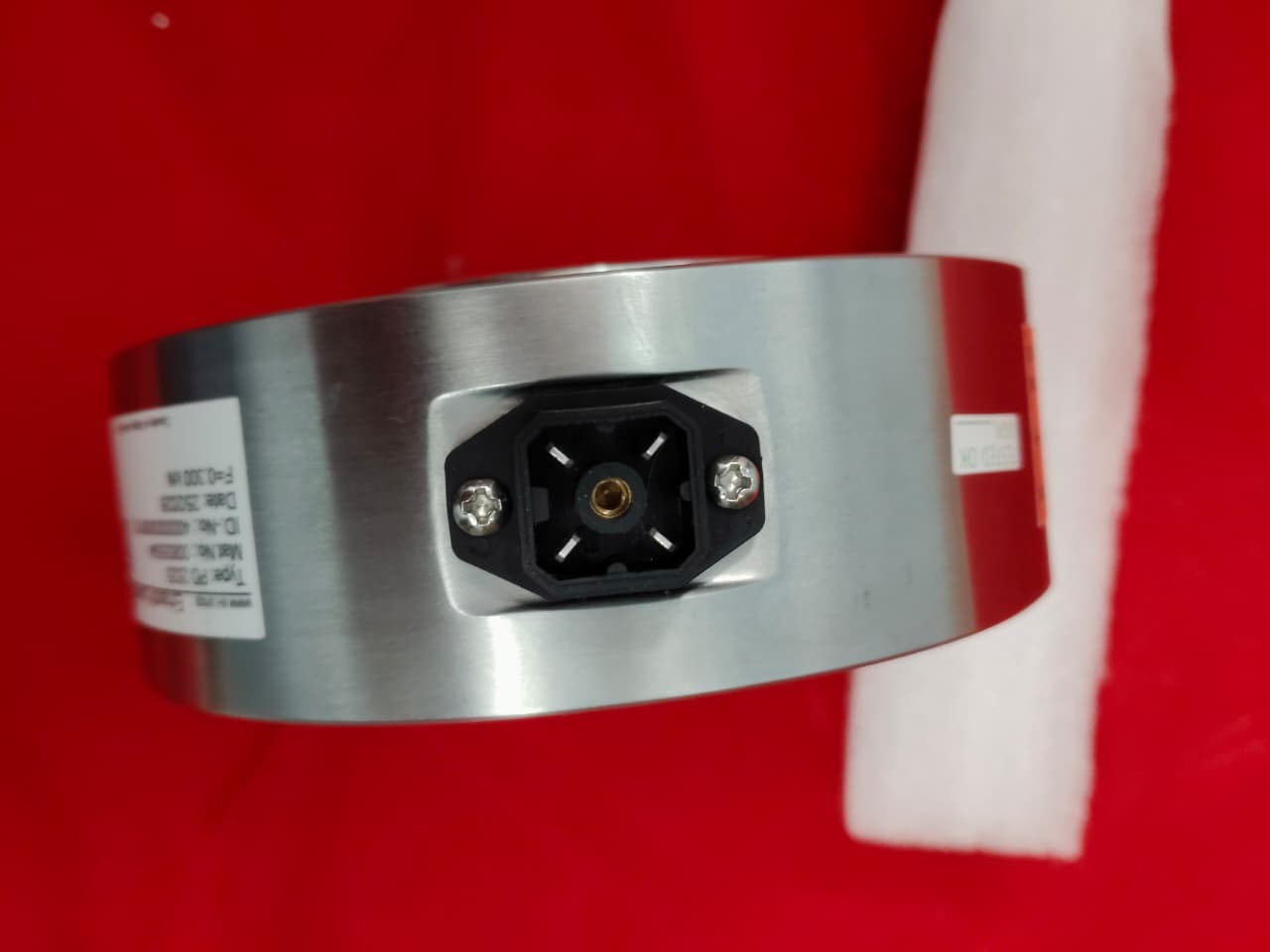

OVERVIEW

The PD 25/25 flange load cell manufactured by Erhardt+Leimer is designed for precise and reliable tension measurement in various industrial applications. Here’s an overview of its specifications and features:

SPECIFICATION

• Model: PD 25/25
• Brand: Erhardt+Leimer
• Capacity: Depending on the model, it can have different load capacities ranging from a few Newtons to several kiloNewtons.
• Material: Stainless steel construction
• Protection: IP67/IP68
• Output Signal: Depending on the model, it can have different output signals, such as mV/V, 0-10V, 4-20mA, etc.
• Accuracy: High accuracy with up to 0.1% of full scale
• Temperature Range: -20°C to +80°C (-4°F to +176°F)
• Excitation Voltage: Typically 10V DC

FEATURES

1. High Precision: The PD 25/25 load cell offers high precision with an accuracy of up to 0.1% of full scale, ensuring precise tension measurement in various industrial processes.
2. Stainless Steel Construction: Built with stainless steel construction, the load cell is robust, durable, and suitable for harsh industrial environments.
3. Flange Mounting: The load cell features a flange mounting design, allowing for easy installation and integration into existing systems.
4. IP67/IP68 Protection: With IP67/IP68 protection, the load cell is dust-tight and waterproof, making it suitable for use in challenging industrial environments.
5. Multiple Output Options: The load cell is available with various output options, including mV/V, 0-10V, 4-20mA, etc., providing flexibility for integration into different control systems.
