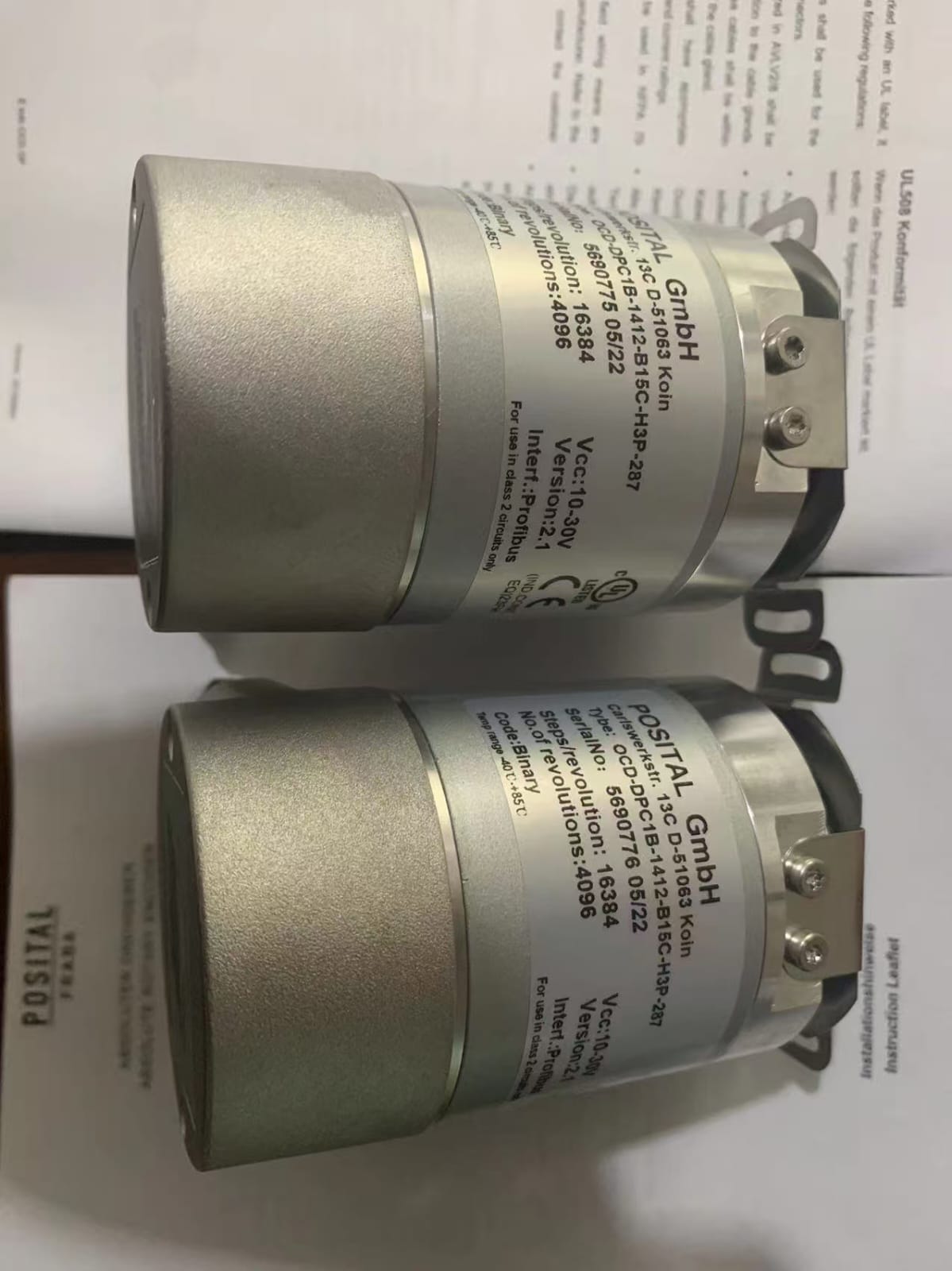

Posital OCD-DPC1B-1412-B15C-H3P-287 Absolute Rotary Encoder
Posital OCD-DPC1B-1412-B15C-H3P-287 Absolute Rotary Encoder
The POSITAL OCD-DPC1B-1412-B15C-H3P-287 Absolute Rotary Encoder is an industrial position measurement device designed to provide accurate information about the rotational position of a machine shaft. Absolute rotary encoders are widely used in industrial automation, motion control systems, manufacturing equipment, and machinery positioning applications. Unlike incremental encoders, an absolute encoder provides a unique position value, helping control systems identify the shaft's position. POSITAL is known for developing industrial rotary encoders and position sensors for demanding automation environments. A POSITAL absolute rotary encoder can help improve machine control, positioning accuracy, and operational reliability when correctly matched with the application requirements. It can be used in automated production lines, packaging machines, material handling equipment, and other industrial systems that require precise rotary position feedback. The POSITAL OCD-DPC1B-1412-B15C-H3P-287 encoder model should be selected according to its electrical interface, mechanical mounting, shaft configuration, resolution, and environmental requirements. Correct installation and compatibility with the PLC or motion controller are important for dependable operation. For industrial users, this absolute rotary encoder can be a suitable component for monitoring rotational movement and supporting efficient, automated machine operation.
OVERVIEW
The POSITAL OCD-DPC1B-1412-B15C-H3P-287 Absolute Rotary Encoder is designed for industrial automation systems that require dependable shaft position measurement. It belongs to the POSITAL IXARC encoder family and uses optical sensing technology to measure rotational position. Its PROFIBUS DP communication interface allows position data to be transferred to compatible PLCs and industrial controllers for monitoring and machine control.
Absolute rotary encoders are useful in applications where knowing the exact shaft position is important for accurate machine operation. They support automated production lines, material handling systems, textile machinery, packaging equipment, and industrial motion control applications.
The OCD-DPC1B series supports configurable position resolution, counting direction, preset values, and diagnostic functions. These features help engineers configure the encoder according to their machine requirements. Before installation, users should verify the exact model code, shaft dimensions, electrical connection, and protection rating to ensure compatibility with the existing automation system.
SPECIFICATION
Brand POSITAL
Series IXARC OCD
Model OCD-DPC1B-1412-B15C-H3P-287
Product type Absolute rotary encoder
Sensing technology Optical
Communication interface PROFIBUS DP
Operating voltage 10–30 V DC
Encoder type Multiturn, subject to exact model verification
Shaft configuration Blind hollow shaft, 15 mm listed for related B15 variants
Resolution Verify exact suffix and manufacturer datasheet
Protection rating Verify exact model variant
Applications Industrial automation and position feedback
FEATURES
The POSITAL absolute rotary encoder offers several useful features for industrial automation and position monitoring.
1. Absolute position measurement: Provides position information to help controllers monitor shaft rotation accurately.
2. PROFIBUS DP communication: Supports data exchange with compatible PLCs and industrial automation equipment.
3. Optical sensing technology: Measures rotational position using an optical sensing system.
4. Configurable operation: The OCD-DPC1B family supports settings such as resolution, counting direction, preset position, and velocity scaling.
5. Diagnostic functions: Supports diagnostic information to assist with commissioning and troubleshooting.
6. Industrial applications: Suitable for evaluating use in production machinery, packaging systems, material handling, and automated equipment.
7. Flexible integration: Can be integrated into compatible control systems when the electrical interface and mechanical mounting match.
8. Machine positioning: Helps automated systems monitor rotary movement and maintain controlled operating sequences.
For best performance, install the encoder according to the manufacturer’s instructions and verify the PROFIBUS configuration, mounting arrangement, and electrical supply before commissioning.
