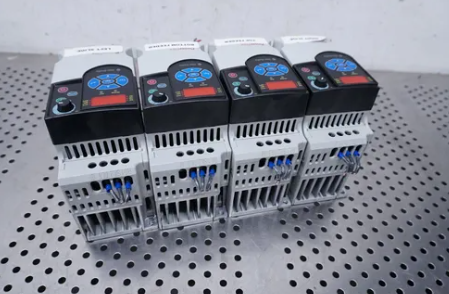

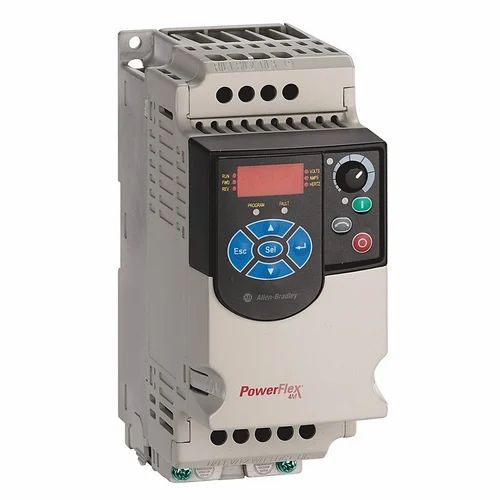

PowerFlex 4M-0.4 kw(0.5HP) 22f D1p5n103

The Allen Bradley PowerFlex 4M AC Drive (0.4 kW / 0.5 HP, 22F-D1P5N103) is a compact and reliable motor drive designed for simple and effective motor control. It is widely used in different industrial applications where small motors require smooth and efficient operation. With its user-friendly design, it is easy to set up and operate, making it a cost-effective solution for basic motor control needs.

In industrial automation, the PowerFlex 4M provides stable performance and flexibility. It supports V/Hz control for induction motors and is well-suited for applications like conveyors, pumps, and fans. Its built-in features, such as programmable I/O and overload protection, improve safety and reduce downtime. The drive is compact, so it can fit into tight control panels, making it highly practical for modern automated systems.

For textile automation, this model is ideal for small machines that require consistent motor speed and energy efficiency. Whether in spinning, winding, or small dyeing units, the PowerFlex 4M ensures smooth operation, helping to improve fabric quality and reduce energy costs.

OVERVIEW

The Allen Bradley PowerFlex 4M AC Drive (0.4 kW / 0.5 HP, 22F-D1P5N103) is a compact and efficient motor control solution designed for reliable performance in various industrial applications. It is ideal for controlling small motors where space-saving and cost-effective operation are important. With its simple interface and easy programming, the drive allows quick installation and hassle-free operation, making it suitable for both new systems and upgrades.

In the field of industrial automation, the PowerFlex 4M offers stable motor control for applications such as fans, pumps, mixers, and conveyors. It features V/Hz control, overload protection, and programmable I/O that provide safety and flexibility for different automated processes. Its small size and robust design make it easy to integrate into compact control panels.

In textile automation, this drive is well-suited for small machines like winders, spinners, and feeders that require consistent motor speed. It ensures smooth operation, energy efficiency, and reliable performance, helping improve productivity and product quality.

SPECIFICATION

Power Rating: 0.4 kW (0.5 HP)

Voltage Class: 200–240V AC, Single/Three-Phase Input

Output Current: 1.5 A

Control Method: Volts/Hertz (V/Hz) control for induction motors

Frequency Range: 0–500 Hz

Overload Capacity: 150% for 60 seconds, 200% for 3 seconds

I/O Options:

5 digital inputs

1 analog input (0–10V, 4–20mA)

1 analog output

1 relay output

Communication: RS485 (Modbus RTU) built-in

Protection Features: Overvoltage, undervoltage, overcurrent, ground fault, and motor overload

Operating Temperature: Up to 50°C without derating

Design: Compact size for easy installation in tight panels

Applications: Ideal for conveyors, pumps, fans, mixers, and small machines in textile automation like winders, feeders, and spinners.

FEATURES

The Allen Bradley PowerFlex 4M AC Drive (0.4 kW / 0.5 HP, 22F-D1P5N103) offers practical features that make it a reliable choice for industrial applications, industrial automation, and textile automation. Designed for simplicity, it is compact and easy to install in small control panels. Its straightforward keypad and user-friendly interface allow quick setup, reducing installation time and effort.

For industrial automation, the PowerFlex 4M provides dependable motor control using V/Hz technology. It ensures stable operation for pumps, fans, conveyors, and mixers. The drive includes programmable I/O, overload protection, and fault diagnostics, which improve safety and minimize downtime. With its built-in RS485 Modbus communication, it integrates smoothly with automation systems, making it suitable for small to medium machines.

In textile automation, this drive delivers smooth and consistent motor speed, ensuring efficiency in applications like winding, spinning, and feeding. Its energy-saving operation, compact design, and durability help maintain product quality and improve overall productivity.
