OVERVIEW

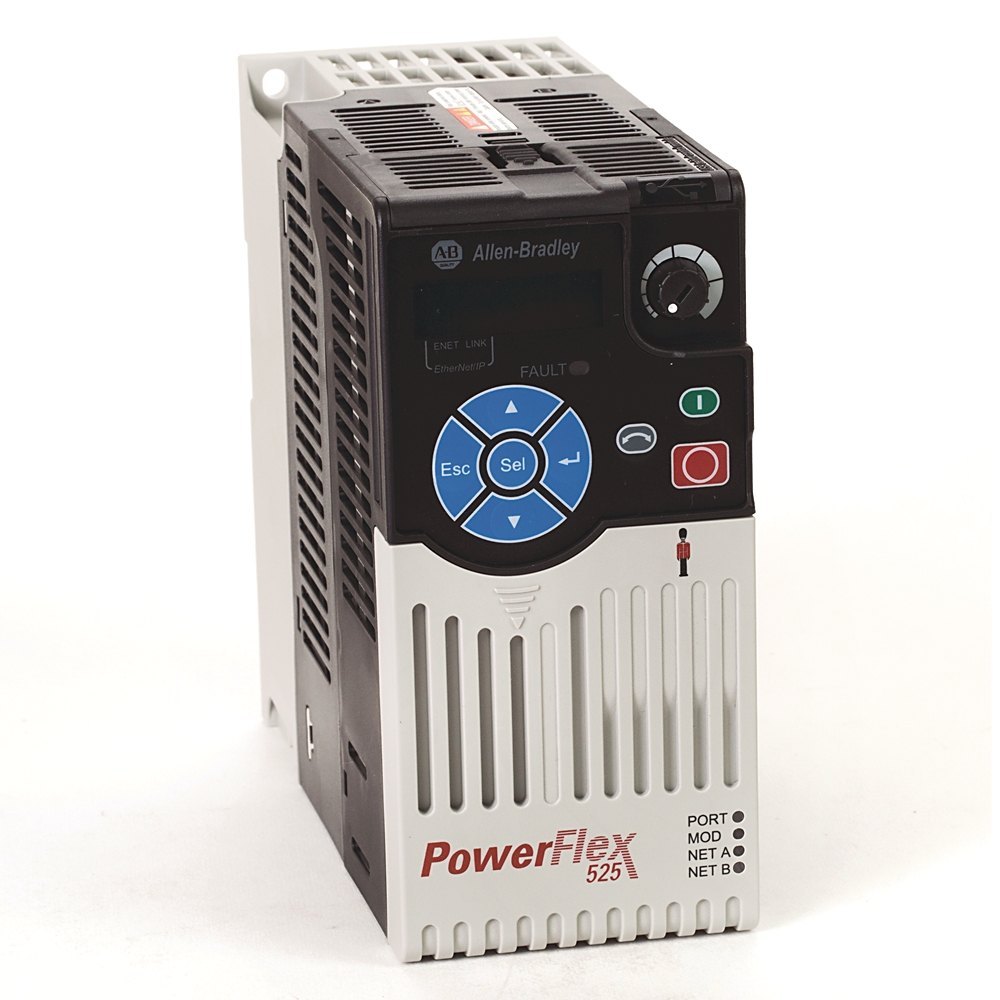

The Allen-Bradley PowerFlex 525 AC Drive, model 25B-D4P0N104, is a versatile and compact variable frequency drive designed for motor control applications. It offers advanced features suitable for various industrial environments.

SPECIFICATION

• Power Rating: 1.5 kW (2 HP)
• Voltage Class: 380…480V AC, 3-phase
• Output Current: 4 Amps
• Enclosure Type: IP20 NEMA / Open Type
• Frame Size: Frame A
• EMC Filtering: No internal filter

FEATURES

• Embedded Communications: Integrated EtherNet/IP for seamless connectivity.
• Safety Functionality: Includes Safe Torque-Off (STO) certified at PLd/SIL2 Cat 3, allowing removal of rotational power without disconnecting the drive, facilitating quicker restarts after safety events.
• Modular Design: Features a removable control module and power module, enabling efficient installation and maintenance.
• High-Temperature Operation: Capable of operating in environments up to 70 °C (158 °F), making it ideal for applications such as conveyors, fans, pumps, and mixers.
