OVERVIEW

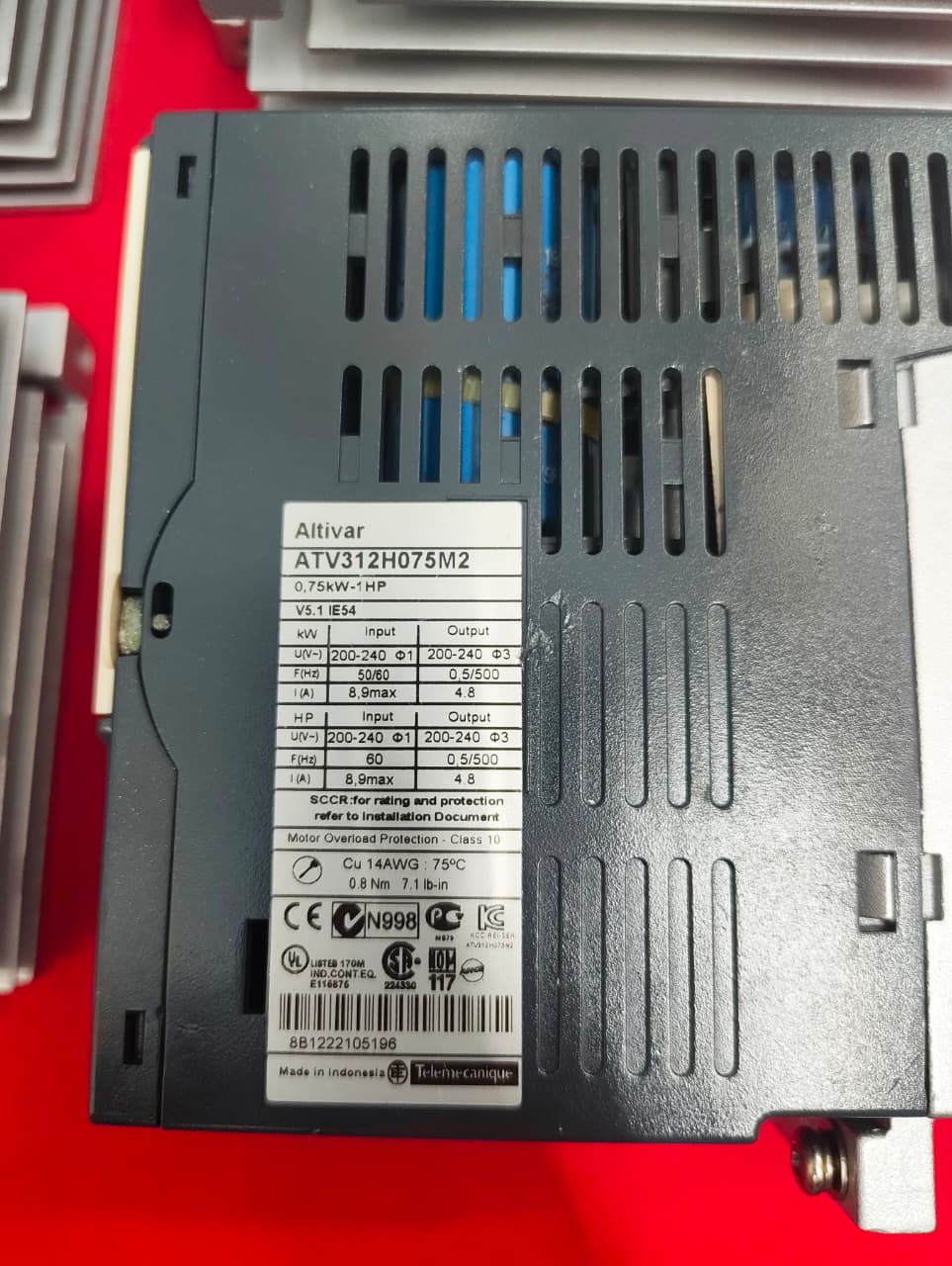

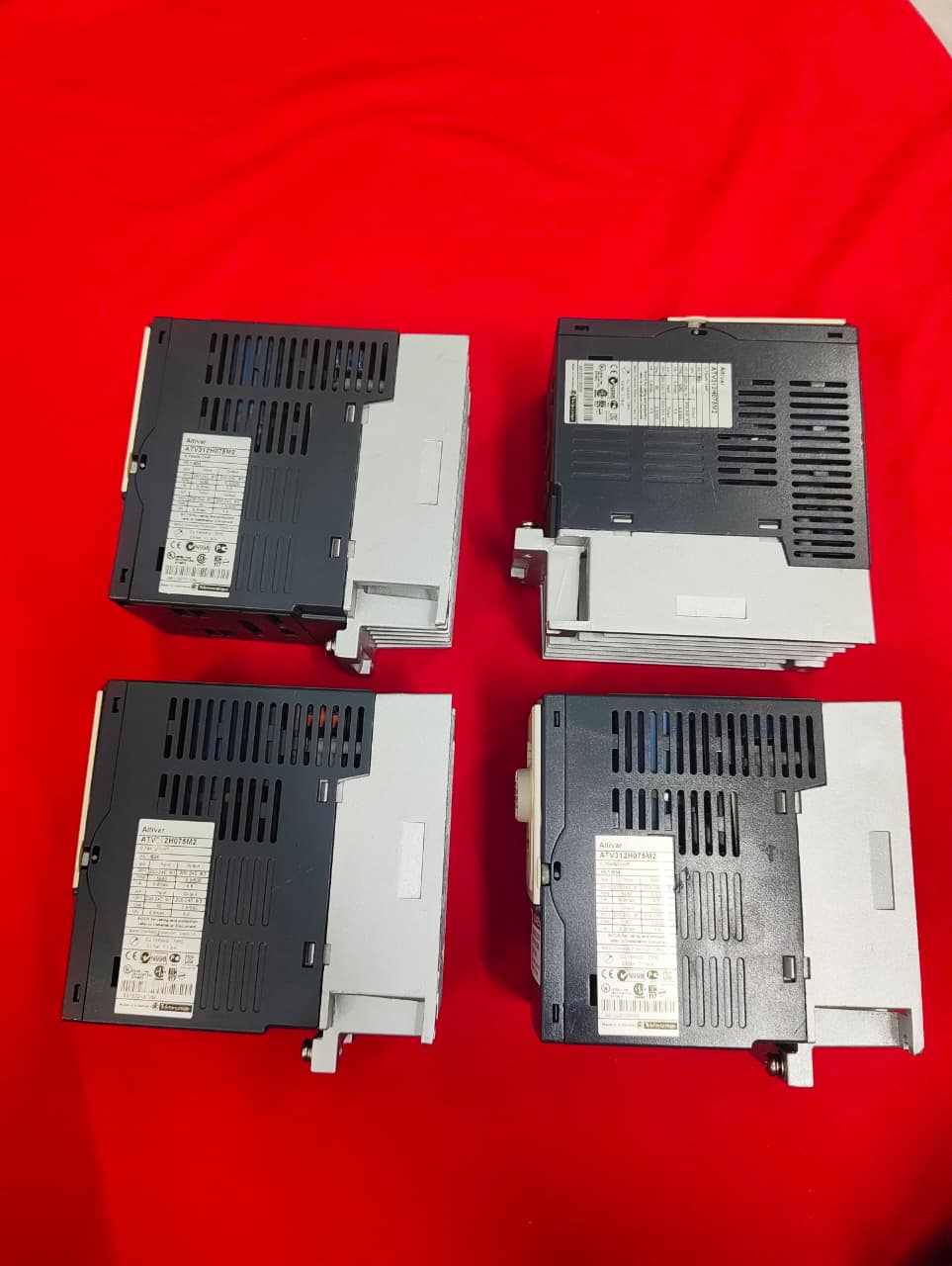

The Schneider Electric Altivar ATV312H075M2 Frequency Inverter is a compact and reliable drive designed for controlling AC motors in industrial automation applications. This Schneider Electric Altivar ATV312 variable frequency drive provides smooth motor speed control, helping machines operate efficiently and reliably. The ATV312H075M2 Frequency Inverter is suitable for applications where accurate speed regulation, controlled acceleration, and motor protection are required.
Designed for industrial environments, this Schneider Electric frequency inverter can be used in conveyors, pumps, fans, compressors, packaging equipment, textile machinery, and material-handling systems. The Altivar 312 drive offers practical motor control functions and can help improve machine performance while reducing unnecessary energy consumption.
The ATV312H075M2 is a useful solution for machine builders, maintenance teams, and automation engineers looking for a dependable variable frequency drive, AC motor drive, or industrial motor controller. Its compact design makes it suitable for control panels where installation space is limited. It is widely relevant to industrial automation, motor control, and machine automation applications.

#

SPECIFICATION

Manufacturer Schneider Electric
Product Range Altivar 312
Model ATV312H075M2
Product Type Variable Speed Drive / Frequency Inverter
Motor Power 0.75 kW / 1 HP
Rated Supply Voltage 200–240 V AC
Supply Frequency 50–60 Hz
Supply Phase Single Phase
Line Current 8.9 A at 200 V; 7.5 A at 240 V
Apparent Power 1.8 kVA
Maximum Transient Current 7.2 A for 60 seconds
Power Dissipation 60 W at nominal load
Motor Type Asynchronous Motor
Control Method Sensorless Flux Vector Control with PWM
Integrated EMC Filter Yes
Communication Protocols Modbus, CANopen
Protection Rating IP20 upper part; IP21 at connection terminals
Mounting Panel / Heat Sink
Dimensions (W × H × D) 72 × 145 × 142 mm
Net Weight Approx. 1.5 kg
Reference ATV312H075M2

FEATURES

The Schneider Electric Altivar ATV312H075M2 Frequency Inverter is designed to provide reliable and flexible AC motor control for industrial applications. The Schneider Electric Altivar ATV312 offers smooth variable speed control, helping machines manage acceleration, deceleration, and motor operation according to process requirements. The ATV312H075M2 Frequency Inverter is suitable for applications such as conveyors, pumps, fans, compressors, packaging machines, and textile machinery. As a compact variable frequency drive, it can be installed conveniently inside electrical control panels and automation cabinets. The Altivar 312 drive supports practical motor control functions and provides protection features for dependable machine operation. Its Modbus and CANopen communication capabilities allow integration with industrial automation and control systems. The Schneider Electric frequency inverter also includes an integrated EMC filter and supports sensorless flux vector control for efficient motor management. Its compact construction helps save panel space while providing flexible installation options. The ATV312H075M2 is therefore a practical AC motor drive for machine automation, manufacturing equipment, and other industrial automation applications requiring controlled and reliable motor speed regulation.
