OVERVIEW

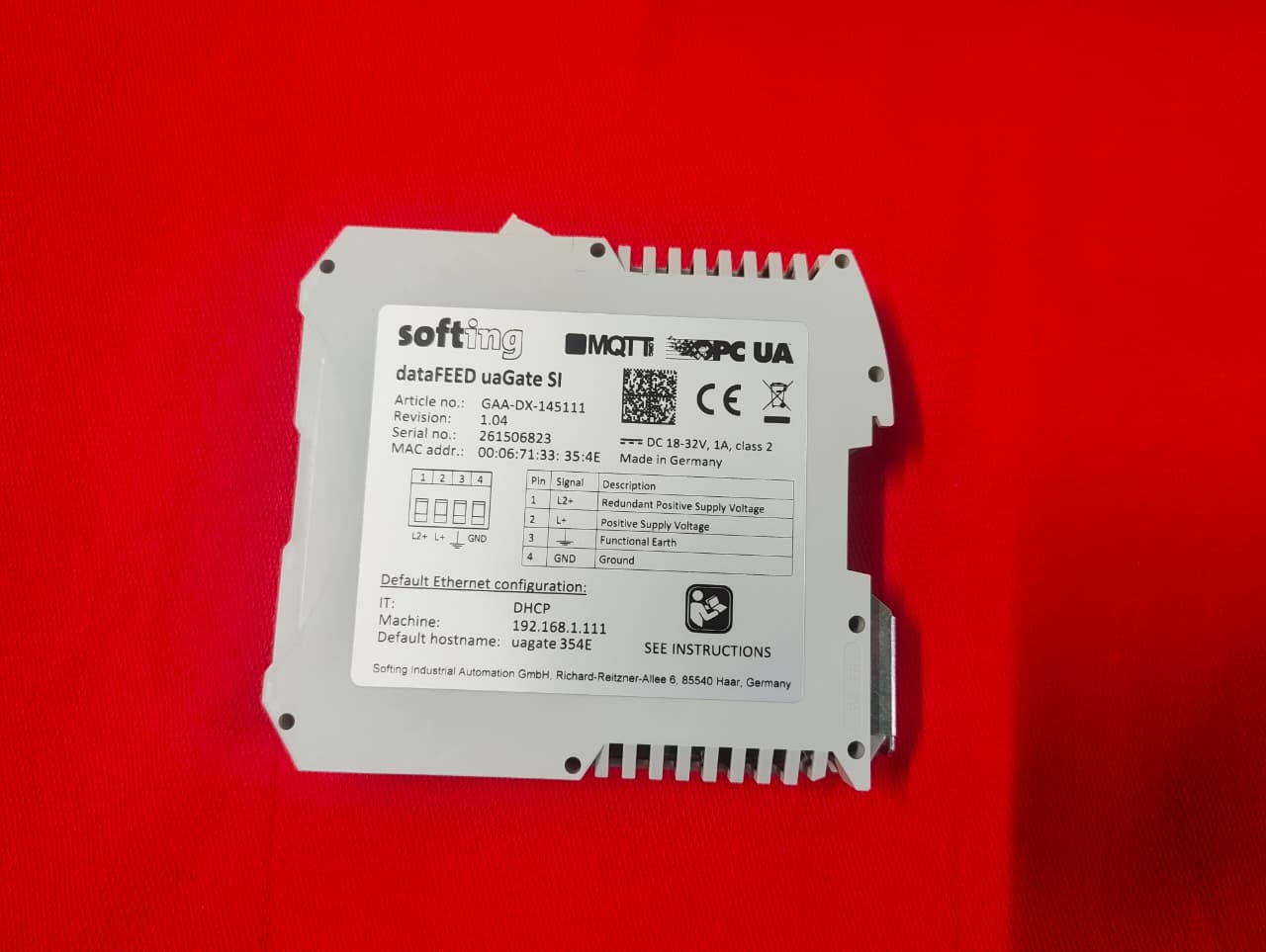

The Softing DataFEED uaGate SI GAA-DX-145111 is an industrial communication gateway developed to support data exchange between automation equipment and industrial software applications. It helps connect industrial control systems with modern data management solutions, making machine information easier to access and use. The Softing DataFEED uaGate SI is designed for industrial environments where reliable communication and secure data access are important.
This Softing industrial gateway uses OPC UA communication technology to support data exchange between compatible industrial systems. It helps businesses improve connectivity between operational technology (OT) and information technology (IT). The DataFEED uaGate SI GAA-DX-145111 can be useful in manufacturing plants, process automation, and smart factory applications where production data needs to be shared with monitoring and analysis systems.
The industrial communication gateway supports digital transformation by helping companies make better use of machine data. It can contribute to improved production visibility, easier system integration, and efficient industrial operations. Before installation, users should check device compatibility, communication interfaces, and configuration requirements to ensure the Softing DataFEED uaGate SI gateway meets their specific automation needs.

SPECIFICATION

• Processor: Altera Cyclone V SoC with a Dual-core ARM Cortex-A9 processor.

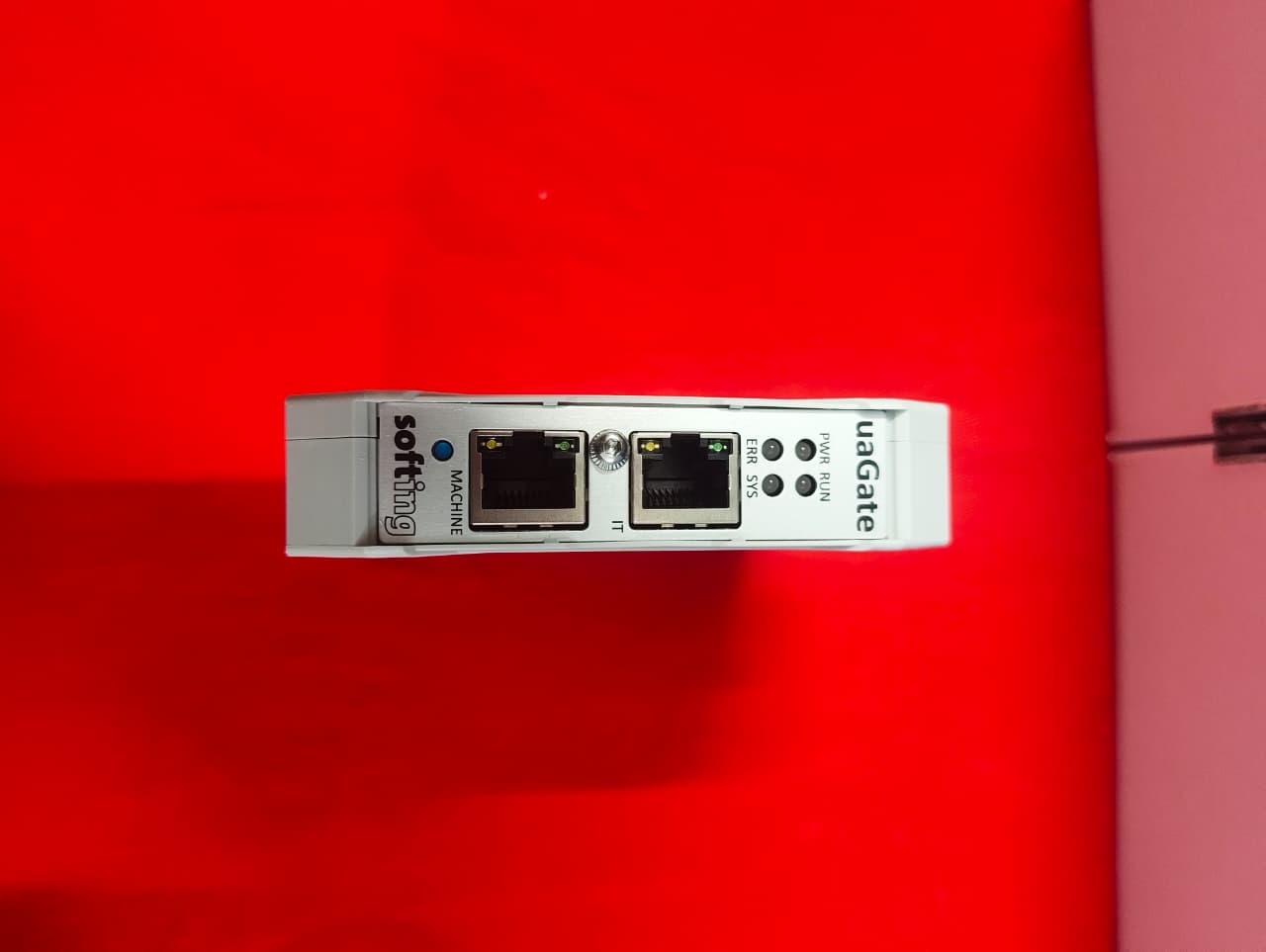

• Network Interfaces: 2 x independent IEEE 802.3 100BASE-TX / 10BASE-T RJ45 ports (physically isolating the Machine/OT network from the IT/Cloud network).
• Local Storage: Micro SD slot (supports cards up to 32 GB).
• Diagnostic LEDs: Built-in status indicators for PWR (Power), RUN (Operational status), ERR (Error flag), and SYS (System/Configuration active).

• PLC Support: Direct communication with Siemens SIMATIC S7-300, S7-400, S7-1200, and S7-1500 controllers. Supports optimized data blocks for S7-1200/1500 controllers.
• OPC UA Server: Actively addresses up to 20,000 data nodes.
• MQTT Publisher: Actively transmits data across up to 1,000 distinct topics directly into private or public clouds (e.g., AWS, Azure, IBM).
• Security Mechanics: Embedded firewall, TLS/SSL encryption, X.509 security certificates, and granular user authentication controls.
• Supported Engineering Tools: Fully compatible with SIMATIC STEP 7 and TIA-Portal editions (V13 through V20) via the dataFEED Exporter tool.

• Input Operating Voltage: 18 VDC to 32 VDC (A protective SELV/PELV power source is explicitly required).
• Current Consumption: Typically 200 mA under active load; maximum 1 A peak surge during cold start initialization.
• Dimensions & Weight: 100 mm x 22.5 mm x 105 mm (H x W x D) | Approximate weight of 0.2 kg.
• Mounting Type: Built for standard 35 mm DIN rails.
• Protection Class: IP20 rated housing.
• Operating Temperature:
• Horizontal Alignment: -40 °C to +55 °C
• Vertical Alignment: -40 °C to +40 °C

FEATURES

The Softing DataFEED uaGate SI GAA-DX-145111 offers useful communication features for industrial automation and machine data integration. It helps connect compatible industrial systems with modern software applications, supporting efficient data exchange and improved production monitoring.
One important feature of the Softing DataFEED uaGate SI is its support for OPC UA technology, which enables standardized communication between compatible industrial devices and applications. This helps simplify data sharing between operational technology (OT) and information technology (IT) systems.
The Softing industrial gateway is designed to support industrial connectivity and data accessibility. It can help manufacturers integrate machine information into monitoring, reporting, and analysis systems. This makes it useful for smart factories, industrial automation, and manufacturing applications.
Key features of the DataFEED uaGate SI GAA-DX-145111 include:
– Industrial Data Communication: Supports data exchange between compatible automation systems.
– OPC UA Support: Enables standardized industrial communication.
– System Integration: Helps connect industrial equipment with software applications.
– Production Monitoring: Makes machine data available for monitoring and analysis.
– Automation Support: Suitable for industrial data connectivity applications.
– Industrial Applications: Supports digitalization and efficient data management.
