TIMOTION TA2P
TIMOTION TA2P

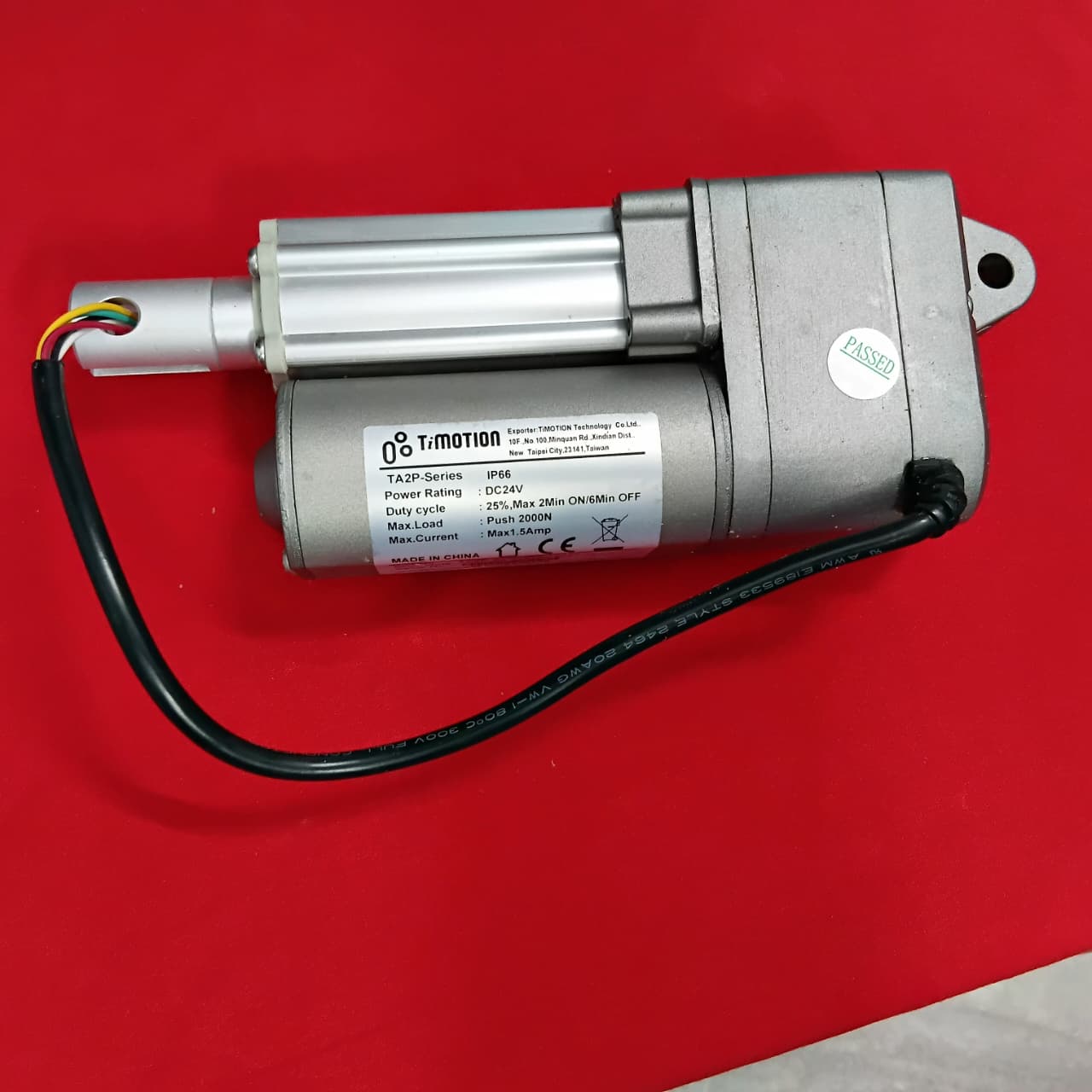

The Timotion TA2P is a powerful and compact electric linear actuator designed for reliable motion control in many industrial applications. These industrial electric actuators are widely used in automation equipment, machinery, and ergonomic systems where controlled pushing or pulling movement is required.
The Timotion TA2P is built with a strong motor that provides high load capacity while maintaining a compact design. It can handle loads up to 3500N in push and 2000N in pull, making it suitable for demanding industrial tasks. This electric linear actuator also offers adjustable stroke lengths from 20 mm to 1000 mm, allowing flexible installation in different machines and systems.
Another advantage of these industrial electric actuators is their durability and protection. The actuator has an IP66 rating, which protects it from dust and water, allowing operation in tough environments. It also supports multiple voltage options such as 12V, 24V, 36V, and 48V DC and includes sensor options for position feedback and control.
Overall, the Timotion TA2P electric linear actuator provides efficient performance, long service life, and smooth linear motion for modern industrial automation systems
OVERVIEW
The Timotion TA2P is a strong and reliable electric linear actuator designed for smooth and controlled linear movement in many industrial applications. These industrial electric actuators are widely used in automation equipment, machinery, medical devices, and ergonomic systems where lifting, pushing, or pulling motion is required.

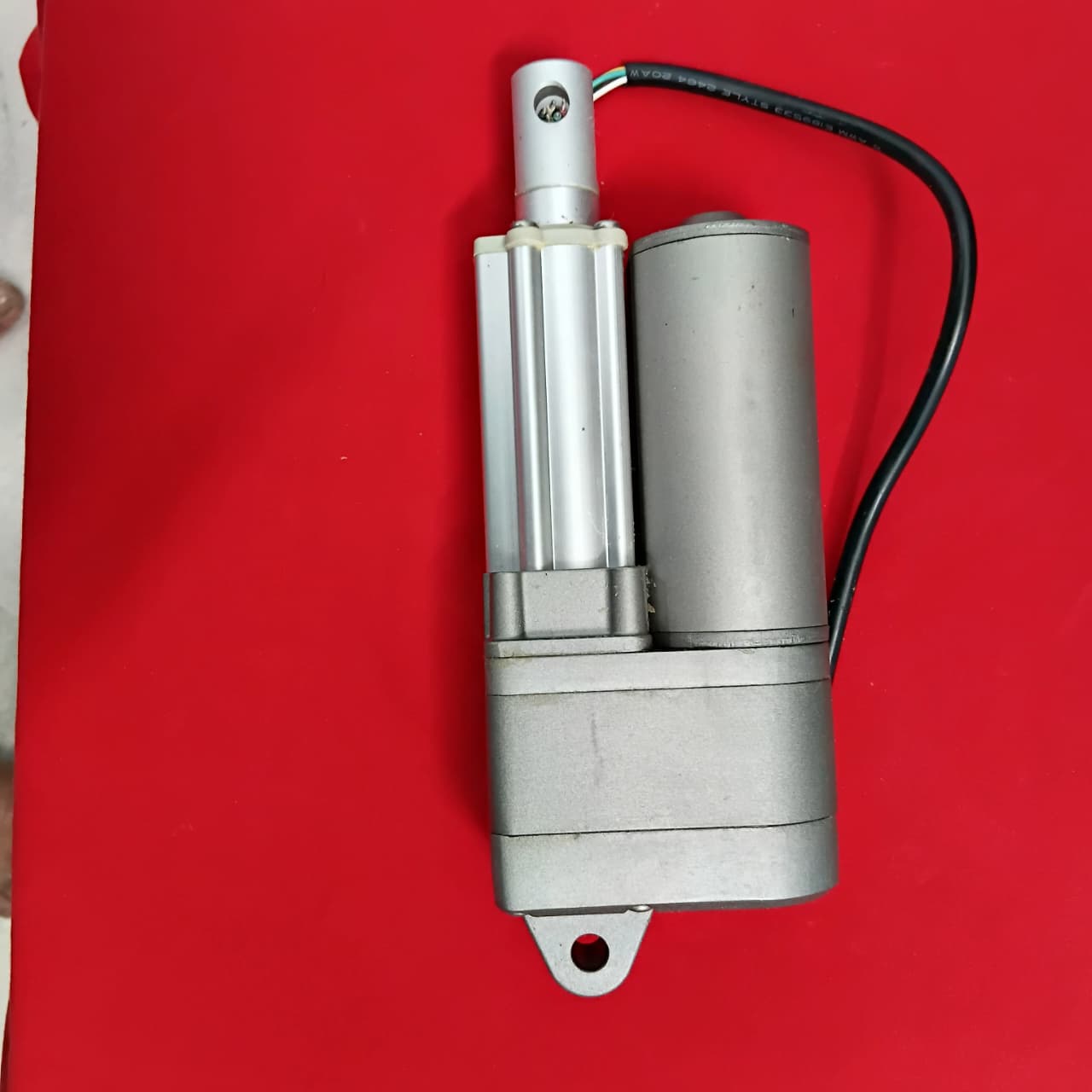

The Timotion TA2P actuator is known for its compact and robust design. It uses a powerful motor that allows it to handle loads up to 3500N in push and 2000N in pull, while still maintaining a small size. This makes it suitable for machines where space is limited but strong performance is needed.
This electric linear actuator also offers flexible stroke lengths from 20 mm to 1000 mm, making it adaptable for different equipment designs. It supports several voltage options such as 12V, 24V, 36V, and 48V DC and can include feedback sensors like Hall sensors or potentiometers for accurate position control.
SPECIFICATION

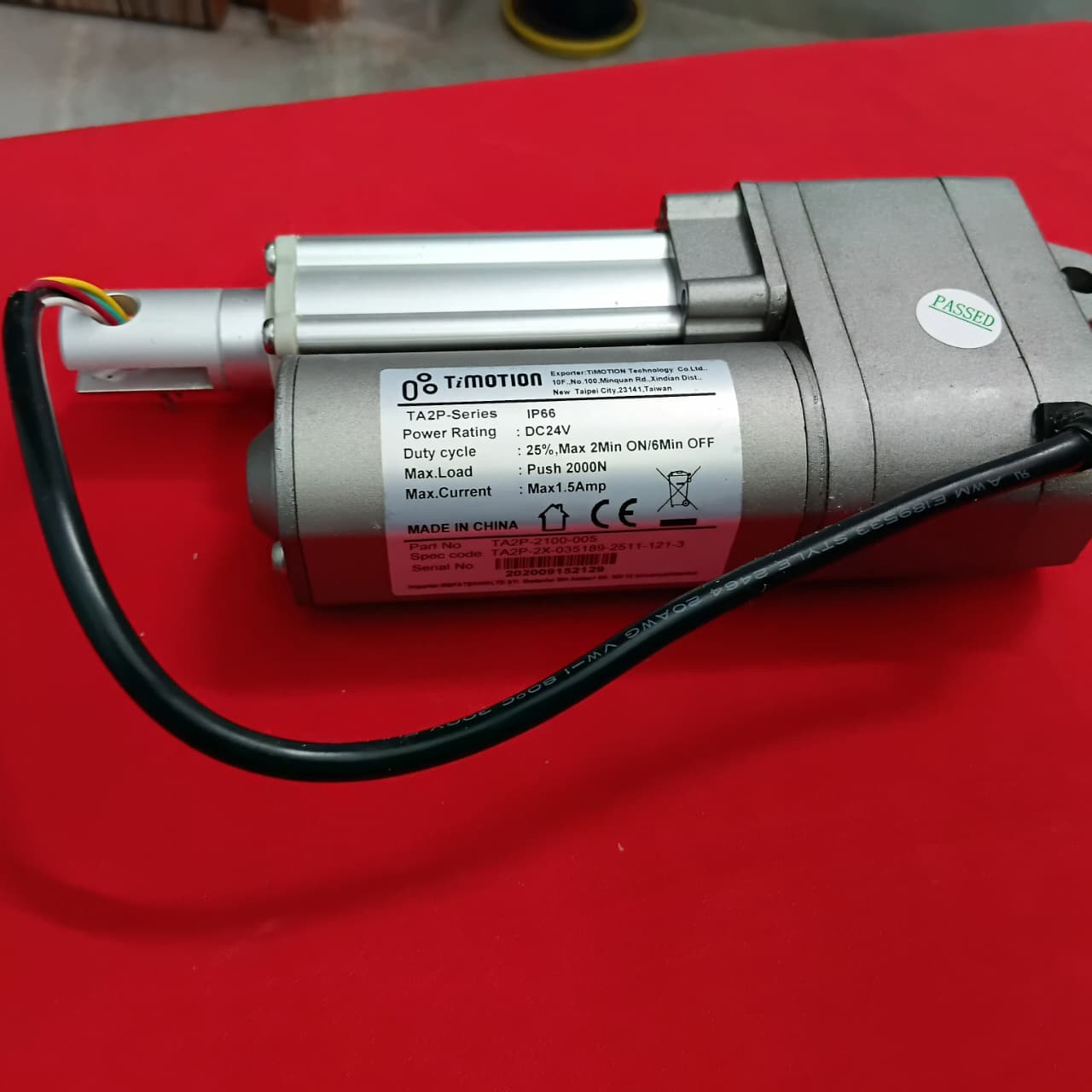

Product Type: Electric Linear Actuator
Model: TA2P Series
Maximum Load (Push): 3500 N
Maximum Load (Pull): 2000 N
Maximum Speed (Full Load): 2.4 mm/s
Maximum Speed (No Load): 56.5 mm/s
Stroke Length: 20 mm – 1000 mm
Motor Voltage: 12 V / 24 V / 36 V / 48 V DC
Retracted Length: ≥ Stroke + 108 mm
Protection Rating: IP66M (dust and water resistant)
Operating Temperature: −25°C to +65°C
Signal Output Options: Mechanical potentiometer, Hall sensors, Reed sensors
Certification: UL73 / IEC safety standards
Color: Silver
FEATURES
The Timotion TA2P is a powerful and durable electric linear actuator designed for demanding industrial applications. These industrial electric actuators are built to deliver reliable linear motion for lifting, pushing, or positioning heavy loads in automation systems.
One key feature of the Timotion TA2P is its high load capacity, allowing it to handle up to 3500N in push and 2000N in pull, making it suitable for heavy-duty machinery and equipment. The actuator also offers adjustable stroke lengths from 20 mm to 1000 mm, giving flexibility for different installation requirements.
Another important feature is its IP66M protection rating, which protects the electric linear actuator from dust and water, allowing it to work in harsh industrial environments. The actuator also supports multiple feedback sensor options, such as Hall sensors and potentiometers, to provide accurate position control.
These industrial electric actuators also operate with different voltage options including 12V, 24V, 36V, and 48V DC, making them suitable for many automation systems. Overall, the Timotion TA2P offers strong performance, durability, and efficient motion control for industrial machinery.
