ADI01 Relay Interface
ADI01 Relay Interface

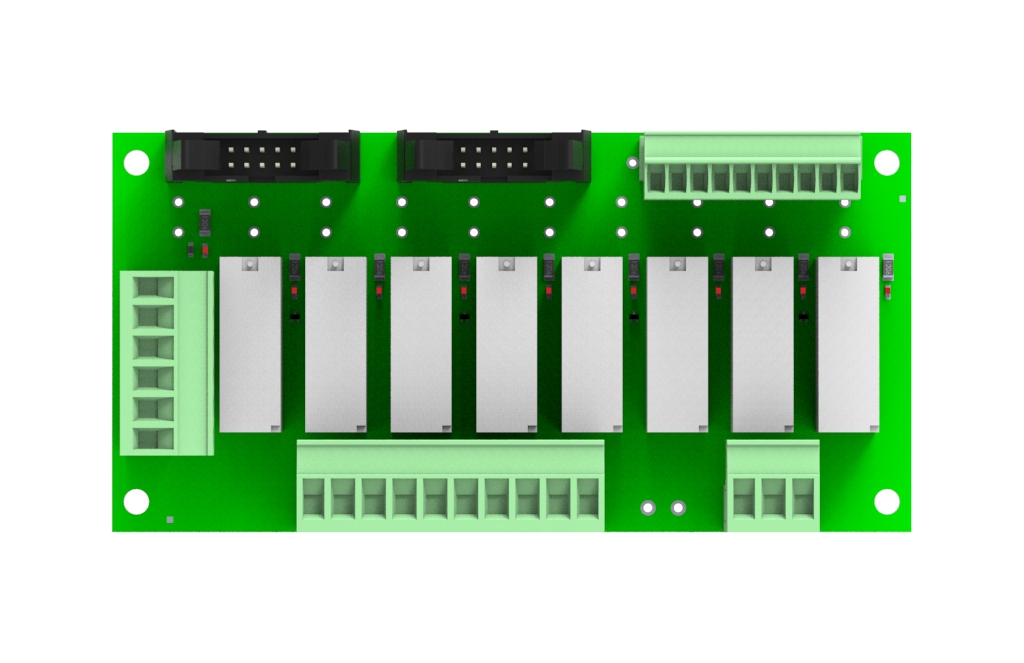

The ADI01 relay interface by ASCON is an important accessory used as a dyeing machinery spare part to enhance control systems in textile factories. It is designed to expand the number of relay outputs available on the VisualPAC (vP4) controller, which is widely used in industrial automation. This relay interface connects easily to the vP4 controller using a flat cable, providing additional control options without needing separate wiring for each relay.
The ADI01 features 8 relay outputs, each capable of handling 8A current, allowing it to control multiple devices like pumps, heaters, or valves used in dyeing machinery. By increasing relay outputs, it helps manage complex dyeing processes where different steps need precise control.
Its modular design makes installation and expansion simple and efficient. The ADI01 supports reliable and safe switching of electrical loads, which is essential to keep dyeing machines working smoothly. Using this interface as a spare part improves production quality and reduces machine downtime in textile dyeing plants.
OVERVIEW
The ADI01 relay interface by ASCON is a useful device often used as a dyeing machinery spare part in textile factories. It works with the VisualPAC controller to increase the number of relay outputs available for controlling different parts of dyeing machines. This lets factory managers control more equipment like heaters, valves, and pumps without needing complicated extra wiring.
The ADI01 has 8 relay outputs, each able to handle up to 8 amps of current, making it strong enough to switch various electrical devices safely. Its modular design allows easy connection to the main controller through a flat ribbon cable, simplifying installation and expanding control capacity.
This relay interface supports smooth operation of dyeing machinery by providing reliable and flexible control solutions. It helps maintain accurate control during dyeing processes, which is important for consistent fabric quality. By using the ADI01 as a spare part, textile factories can improve production efficiency and reduce unexpected machine downtime.
SPECIFICATION
Relay Outputs: 8 relays.
Contact Type: SPDT (Single Pole Double Throw).
Current Rating: Each relay can handle up to 8 A at 250 VAC.
Connection: Connected to the vP4 controller with a flat ribbon cable.
Dielectric Strength: 1500 VAC for 1 minute.
Insulation Resistance: Greater than 500 MΩ.
Housing: Compact design suitable for industrial environments.
Function: Expands relay outputs for controlling heaters, pumps, valves, and other electrical parts in dyeing machinery.
Use: Enables flexible and reliable control of multiple equipment in textile dyeing processes, helping reduce downtime and improve production.
FEATURES
The ADI01 relay interface by ASCON has several features that make it an important dyeing machinery spare part. It provides 8 additional relay outputs to expand the control capability of VisualPAC controllers, allowing more devices on dyeing machines to be managed easily. Each relay output handles up to 8 amps, suitable for controlling heaters, pumps, valves, and other electrical components used in dyeing processes.
Its modular design connects directly to the main controller via a flat ribbon cable, simplifying installation and reducing wiring complexity. The ADI01 supports safe and reliable switching of electrical loads, helping prevent machine failures and downtime. It is compact and built for industrial environments, ensuring durability in harsh factory conditions.
The interface improves system flexibility by allowing precise control over multiple machine operations simultaneously. This helps textile factories maintain consistent dyeing quality and optimize production efficiency. Overall, the ADI01 relay interface is a reliable and efficient spare part essential for controlling dyeing machinery.
