OVERVIEW

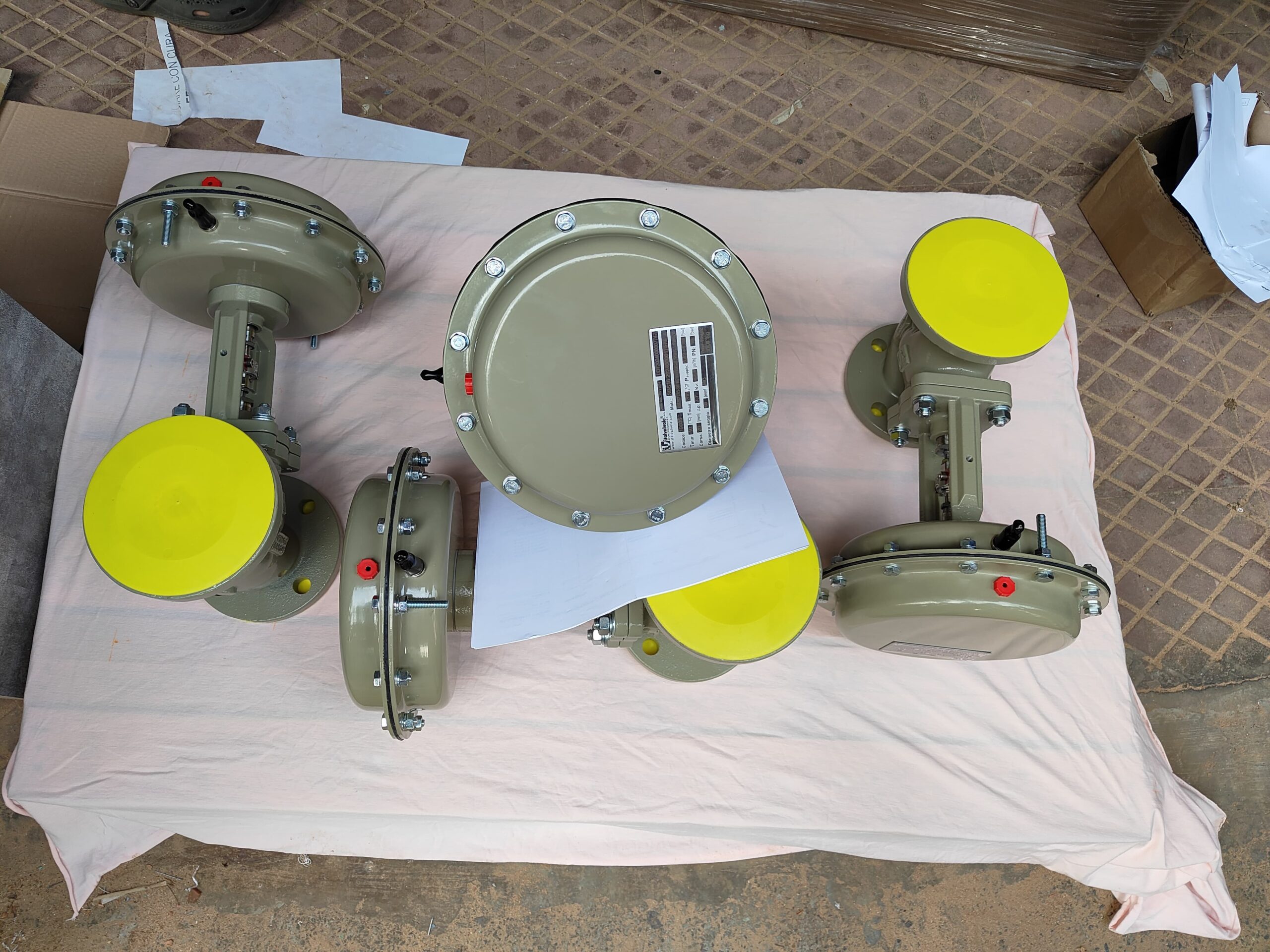

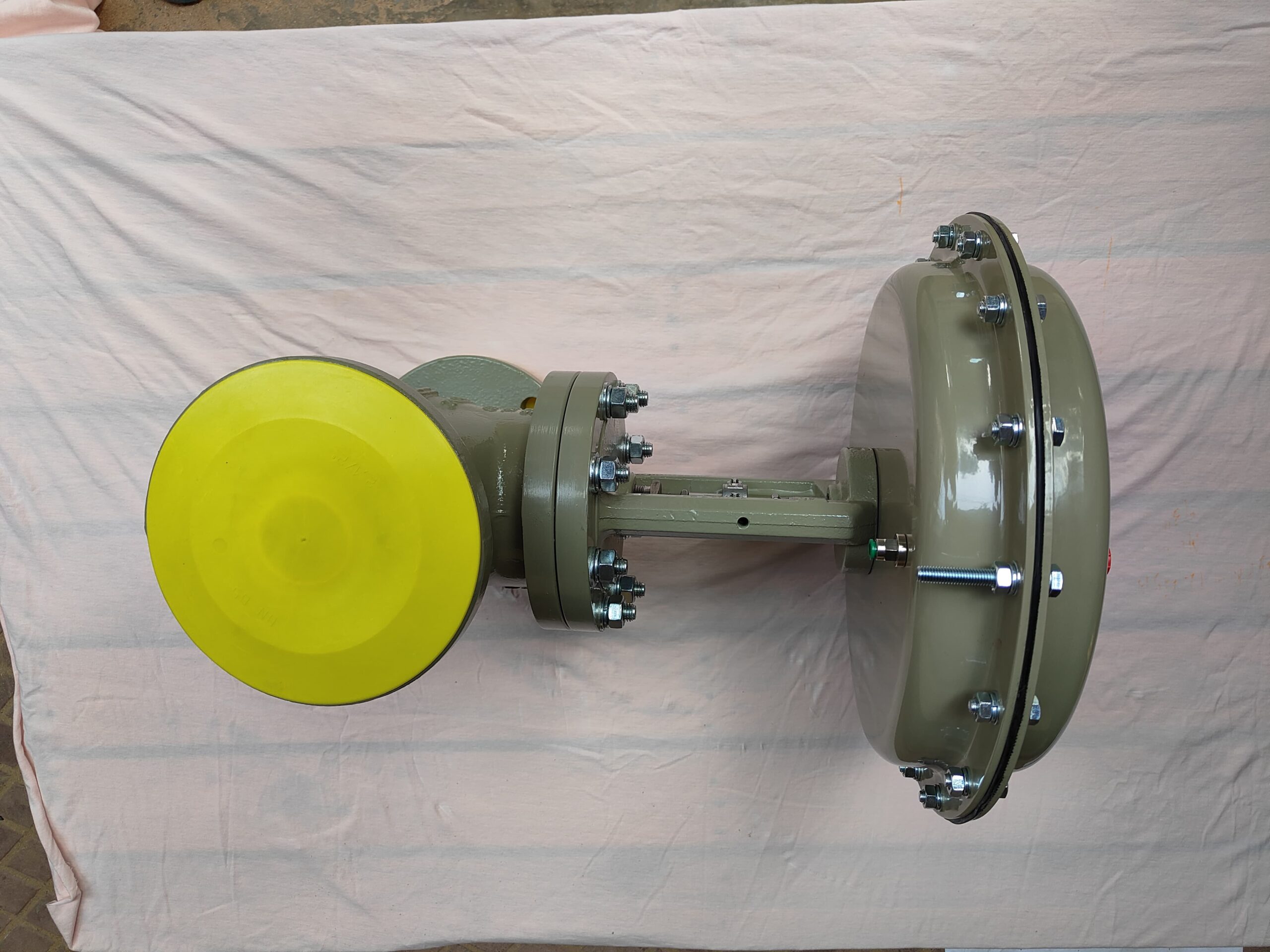

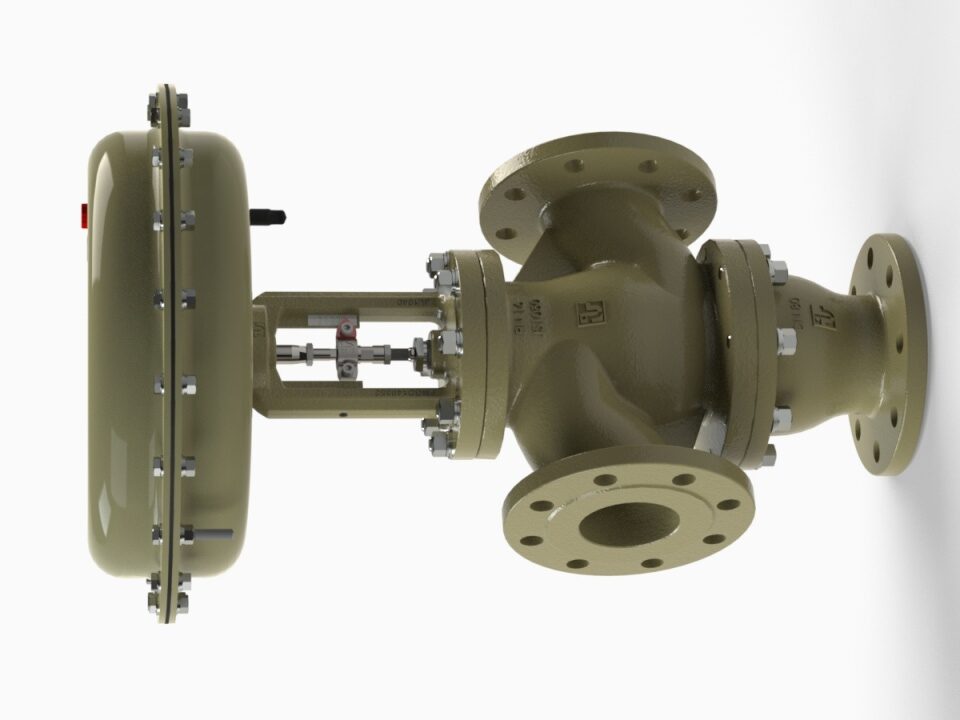

The Italvalvole SBS A26 H275-STD is a 3-way mixing control valve designed for precise flow regulation in various industrial applications.

SPECIFICATION

• Nominal Diameter (DN): 25 mm
• Seat Diameter: 26 mm
• Body Material: GJS-500-7 (Ductile Cast Iron)
• Pressure Rating: PN16 (16 bar)
• Maximum Fluid Temperature: 200°C
• Flow Coefficient (Kv): 11.8 m³/h
• Maximum Differential Pressure (ΔP): 12.3 bar

FEATURES

• Valve Characteristic: Linear
• Actuator Type: H275 – STD [FEP04]
• Actuator Signal Range: 6–18 psi
• Stem Seal: PTFE with PTFE/Graphite Packing
• Seat Seal Material: PEEK
• Stroke Length: 15 mm
• Supply Fluid Connection: 1/4″ G
• Actuator Function: Normally Open (NO)
• Emergency Handwheel: Included
• PED Classification: Complies with Article 4, Paragraph 3 of the 2014/68/EU Pressure Equipment Directive
