OVERVIEW

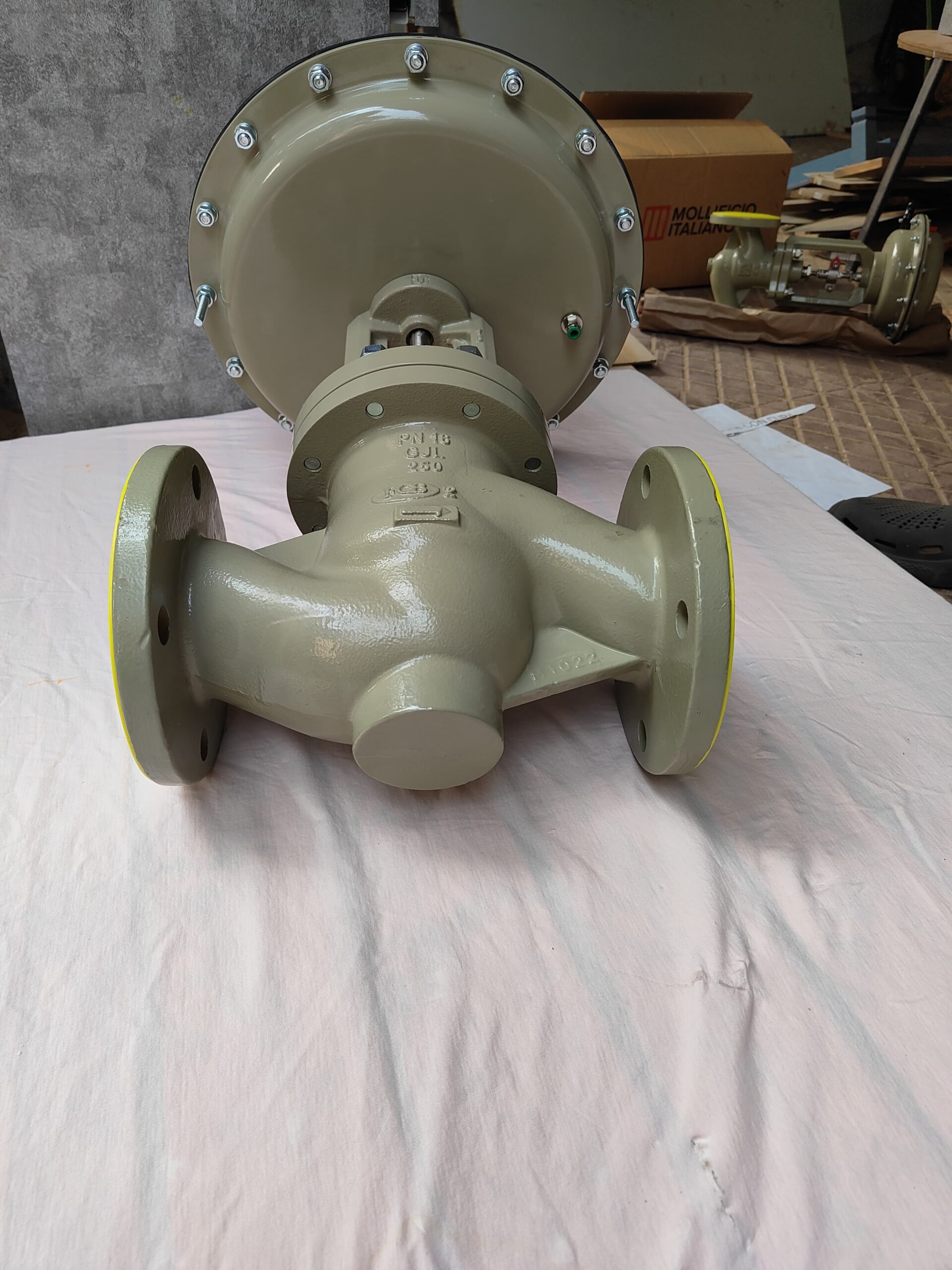

The Italvalvole SBS B62 H275 is a 2-way control valve engineered for precise flow regulation in various industrial applications.

SPECIFICATION

• Nominal Diameter (DN): 50 mm
• Seat Diameter: 48 mm
• Body Material: GJL-250 (Grey Cast Iron)
• Pressure Rating: PN16 (16 bar)
• Maximum Fluid Temperature: 200°C
• Flow Coefficient (Kv): 42.4 m³/h
• Maximum Differential Pressure (ΔP): 7.7 bar
• Valve Characteristic: Linear
• Actuator Type: H275 – STD [FEP04]

FEATURES

• Actuator Signal Range: 6–18 psi
• Stem Seal: PTFE with PTFE/Graphite Packing
• Seat Seal Material: PEEK
• Stroke Length: 20 mm
• Supply Fluid Connection: 1/4″ G
• Actuator Function: Normally Closed (NC)
• Emergency Handwheel: Included
