OVERVIEW

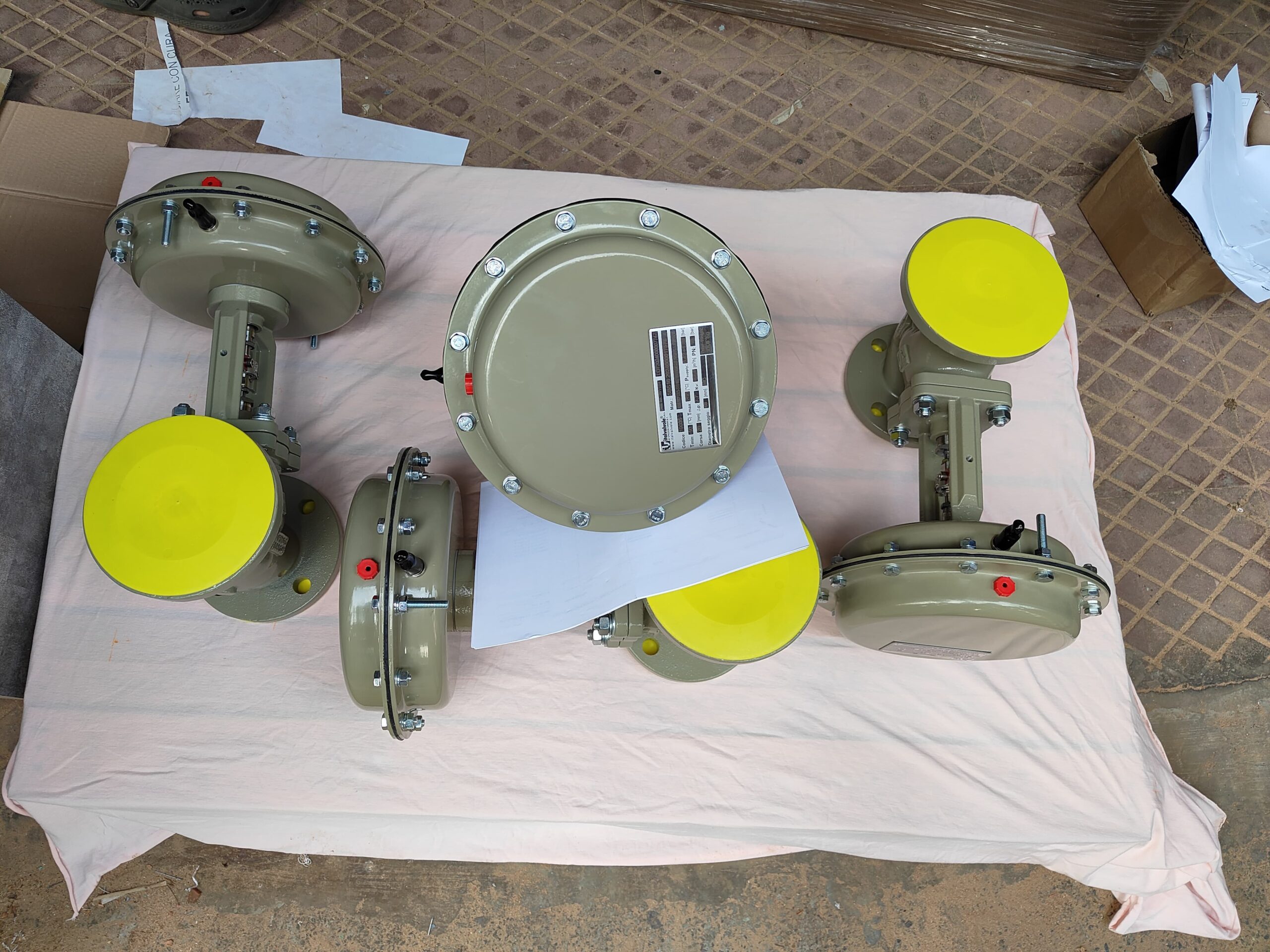

The Italvalvole SBS B77 H360-STD is a 2-way control valve designed for precise flow regulation in various industrial applications.

SPECIFICATION

• Nominal Diameter (DN): 65 mm
• Seat Diameter: 63 mm
• Body Material: GJL-250 (Grey Cast Iron)
• Pressure Rating: PN16 (16 bar)
• Maximum Fluid Temperature: 200°C
• Flow Coefficient (Kv): 74.8 m³/h
• Maximum Differential Pressure (ΔP): 8.5 bar

FEATURES

• Valve Characteristic: Linear
• Actuator Type: H360 – STD [FEP04]
• Actuator Signal Range: 6–18 psi
• Stem Seal: PTFE with PTFE/Graphite Packing
• Seat Seal Material: PEEK
• Stroke Length: 20 mm
• Supply Fluid Connection: 1/4″ G
• Actuator Function: Normally Closed (NC)
• Emergency Handwheel: Included
