Operator Panel OPMT 8072IP
Operator Panel OPMT 8072IP
The Operator Panel OPMT 8072IP by ASCON is a modern and reliable device used as a key textile dyeing machinery spare part. It features a 7-inch color graphic touchscreen display, providing clear and bright visuals with a brightness of 450 Cd/m², ideal for easy machine monitoring in textile factories. The panel is programmable using the “EasyBuilder Pro” software, which allows customization to fit specific dyeing process needs.
This operator panel supports Ethernet and USB communication ports, enabling smooth data connection and integration with other control systems in the dyeing machinery. It also includes an internal real-time clock (RTC), helping to manage timed processes efficiently. Its compact and durable design suits challenging factory environments.
The OPMT 8072IP helps machine operators easily view, monitor, and control complex dyeing processes, improving accuracy and reducing errors. By using this panel as a spare part in textile dyeing machinery, factories can enhance productivity, maintain high-quality fabric dyeing, and reduce downtime.
OVERVIEW
The Operator Panel OPMT 8072IP by ASCON is an advanced and reliable device used as a key textile dyeing machinery spare part. It features a bright 7-inch color graphic touchscreen with a high brightness of 450 Cd/m², making it easy for operators to monitor and control dyeing processes clearly, even in well-lit factory environments. The panel is programmable with the “EasyBuilder Pro” software, allowing customization to meet specific textile dyeing needs.
It includes multiple communication ports, such as Ethernet and USB, ensuring seamless integration with other control systems in dyeing machinery. An internal real-time clock (RTC) helps manage timed operations efficiently. The compact and durable design is well-suited for tough industrial conditions.
By using the OPMT 8072IP, textile factories can improve process accuracy, reduce operator errors, and enhance productivity. This operator panel is an essential spare part that supports smooth and consistent operation of textile dyeing machinery.
SPECIFICATION
Display: 7-inch TFT LCD color touchscreen with 800 x 480 resolution and LED backlight. Brightness is 450 cd/m² with a contrast ratio of 500:1.
Touch Panel Type: 4-wire resistive touchscreen with ±2% accuracy in active area.
Memory: 256 MB flash memory and 128 MB RAM.
Processor: Dual-core RISC processor.

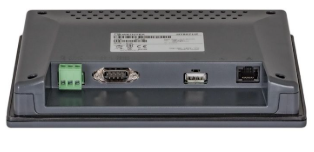

I/O Ports: 1 USB Host (USB 2.0), 1 Ethernet port (10/100 Base-T), and serial ports COM1 (RS-232 4W) and COM2 (RS-485 2W/4W).
Power Supply: 24 ±20% VDC with 450 mA power consumption.
Dimensions: 200.4 mm (W) x 146.5 mm (H) x 34 mm (D); panel cutout 192 x 138 mm.
Weight: Approx. 0.52 kg.
Protection: Front panel NEMA 4/IP65 compliant (water and dust resistant).
Operating Conditions: Temperature 0° to 55°C; storage -20° to 60°C; humidity 10%–90% non-condensing.
Other Features: Fan-less cooling, built-in real-time clock (RTC), and built-in power isolation for safety.
Programming: Supports EasyBuilder Pro software for customization.
FEATURES
The Operator Panel OPMT 8072IP by ASCON offers many useful features, making it an essential textile dyeing machinery spare part. It has a bright 7-inch color graphic touchscreen with 450 Cd/m² brightness, allowing operators to clearly see and control dyeing processes even in brightly lit factory areas. The panel is programmable using EasyBuilder Pro software, which makes it easy to customize the interface and functions to suit specific textile dyeing requirements.
The OPMT 8072IP supports multiple communication ports including Ethernet and USB, enabling smooth integration with various control systems in dyeing machinery. It also includes an internal real-time clock (RTC) that helps manage timed tasks accurately, essential for controlling dyeing cycles.
Built to withstand tough industrial environments, its compact and durable design ensures reliable performance. The panel helps reduce operator errors by providing a clear, user-friendly interface, boosting productivity and ensuring consistent, high-quality fabric dyeing. Overall, it is a vital spare part for efficient textile dyeing machinery operation.
