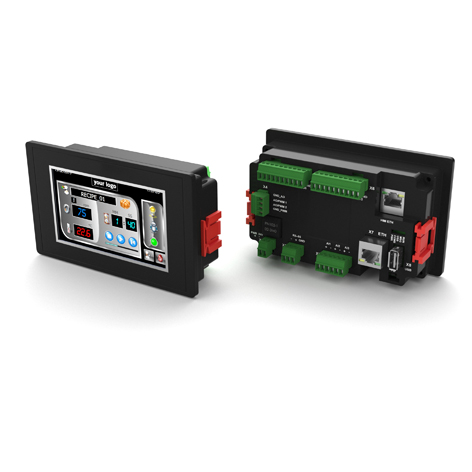

VisualPAC – Multiloop Programmable Controller with Integrated HMI
VisualPAC – Multiloop Programmable Controller with Integrated HMI
The VisualPAC – Multiloop Programmable Controller with Integrated HMI by ASCON is a modern all-in-one control device used in industries like textile dyeing. It combines a programmable logic controller (PLC) and a human-machine interface (HMI) in one compact unit, making it an ideal solution for controlling and automating dyeing machinery processes.
This device features a 4.3-inch colorful touchscreen display that shows real-time data and allows easy operation. It supports multiple control loops (multiloop), meaning it can manage several measurements such as temperature, pressure, and flow at the same time. VisualPAC is programmable with various IEC 61131-3 languages, making it flexible for custom factory needs.
It includes built-in inputs and outputs, PID control for precise process regulation, and ready-to-use function block libraries to simplify setup. By integrating control and visualization, VisualPAC helps improve efficiency, reduce errors, and save space in textile plants. It is a reliable dyeing machinery spare part that enhances production quality and machine uptime.
OVERVIEW
The VisualPAC – Multiloop Programmable Controller with Integrated HMI by ASCON is an advanced control system designed for industrial machines, including textile dyeing equipment. It combines multiple functions in one compact device: a programmable logic controller (PLC), a colorful 4.3-inch touchscreen human-machine interface (HMI), input/output channels, and PID control management. This all-in-one controller simplifies automation and control of various processes in dyeing machinery.
VisualPAC supports programming in all 5 IEC 61131-3 languages and includes ready-to-use function block libraries, making setup easier and customizable for specific factory needs. It can handle multiple control loops simultaneously, such as temperature, pressure, and flow, which are critical in dyeing processes. Its user-friendly interface provides clear visualization of real-time data for efficient monitoring and control.
By integrating automation and visualization, the VisualPAC controller enhances production efficiency, reduces errors, and lowers downtime. As a key dyeing machinery spare part, it helps textile factories improve product quality and maintain smooth operation.
SPECIFICATION
Dimensions: Compact size with 4.3-inch color touchscreen display.
Power Supply: Standard 100-240 VAC, 50/60 Hz.
Inputs: Multiple analogue and digital input channels to connect various sensors (temperature, pressure, flow).
Outputs: Multiple relay, analog, and digital outputs for controlling equipment.
Programming: Supports all 5 IEC 61131-3 programming languages, with ready-to-use function blocks.
Communication: Ethernet and serial communication options for integration with networks.
Control: PID regulation for precise process control.
Protection: Front panel IP54 standard (optional IP65).
User Interface: Colorful touchscreen HMI for easy programming and real-time monitoring.
Special Features: Multi-loop control capability, customizability, and function block libraries to simplify automation.
Applications: Ideal for dyeing machinery spare parts, providing automated control and monitoring of multiple parameters in textile dyeing processes.
FEATURES
The VisualPAC – Multiloop Programmable Controller with Integrated HMI by ASCON offers many features making it a valuable dyeing machinery spare part. It combines a PLC and HMI in one device, saving space and simplifying control. The controller has a bright 4.3-inch touchscreen display for easy operation and real-time process monitoring.
VisualPAC supports multiple control loops simultaneously, such as temperature, pressure, and flow, essential for dyeing machinery. It allows programming in all IEC 61131-3 languages, providing great flexibility for custom setups. The device includes built-in PID control for accurate process regulation and ready-to-use function libraries for faster installation.
With its compact design, integrated inputs and outputs, and user-friendly interface, VisualPAC improves machine efficiency and reduces errors. It helps textile factories maintain precise control over dyeing processes, lowering downtime and enhancing product quality. Overall, it is a reliable and efficient spare part for dyeing machinery automation and control.
